SunSpec Solar Panel Rapid Shutdown Junction Box BFS-31

Highlights:

    • Operates one standard PV module
    • Shutdown panel to 0V at microsecond
    • Plug and Play Easy Installation
    • PLC control signaling
    • PVRSS with multiple inverters
    • Over temperature protection Automatic shutdown

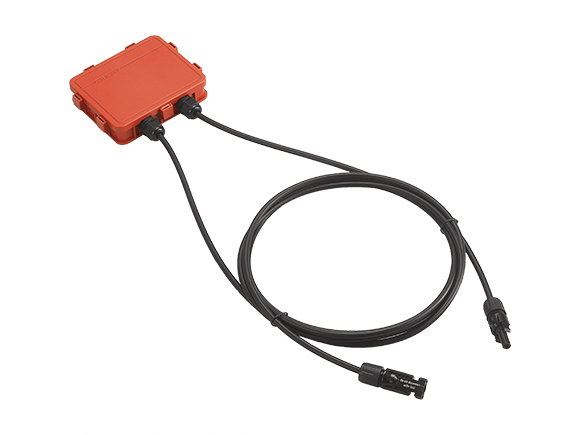

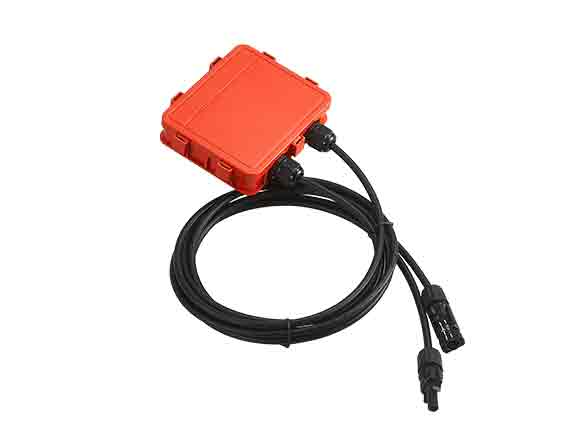

SOLAR PANEL RAPID SHUTDOWN JUNCTION BOX BFS-31


BFS- 31 is designed as a solar panel junction box with rapid shutdown function to meet NEC2017 for solar building fire safety. Operates with most of standard PV module.

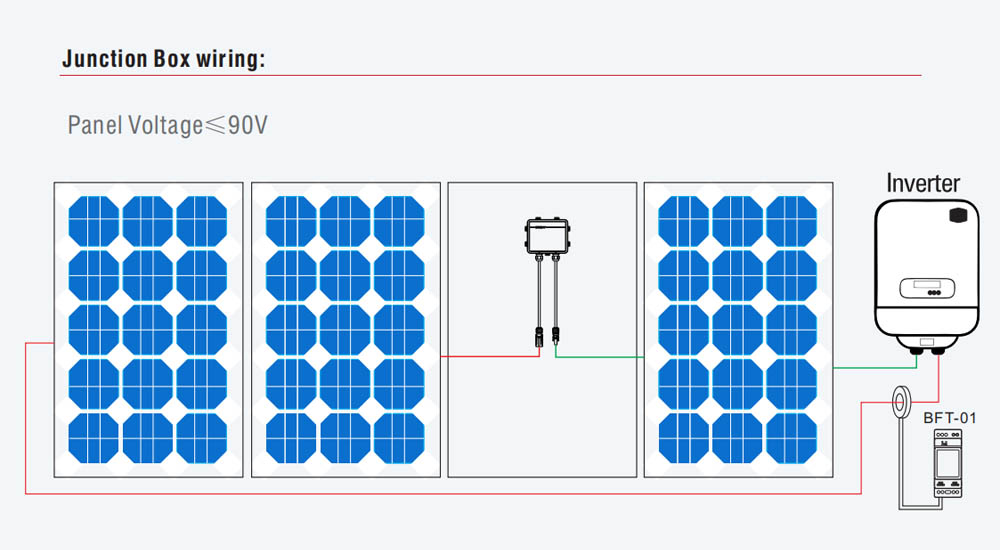

The BFS-31 completes a rapid shutdown solution with the Sunspec signal transmitter.




BFS-31 FEATURES

  • Shutdown panel to 0V at microsecond



  • Plug and Play Easy Installation



  • PLC control signaling



  • PVRSS with multiple inverters



  • Over-temperature protection Automatic shutdown



  • Patents pending



  • 25 years warranty





SPECIFICATION

BFS-31 Specifications
Input
Range of Operating Voltage 18V-90V input
Max Operating Current 18A
Max Input Power 1620W total
Communication PLC (DC Power Line)

SunSpec certificate

Microsecond response RSD

Mechanical
UL 50 E Enclosure Type Rating NEMA 4X
Connectors MC4 (standard)

Jinko connectors for option

Cable length 1800mm
Environmental
Operating Temperature -30°C– +80°C
Ambient Operating Temperature -30°C — +55°C
Over Temperature Protection 85°C
Certificate and Standards UL1741 PVRSS and PVRSE listed

NEC 2014/2017/2020 690.12
