Focus on :

AFCI Combiner Box BHSZ

Highlights:

    • 600 or 1000VDC
    • All DC components are UL listed
    • 8, 12, 18, 20 strings input
    • DC contactors up to 300A
    • Finger safe touch fuse holder for negative and positive poles

Products Description

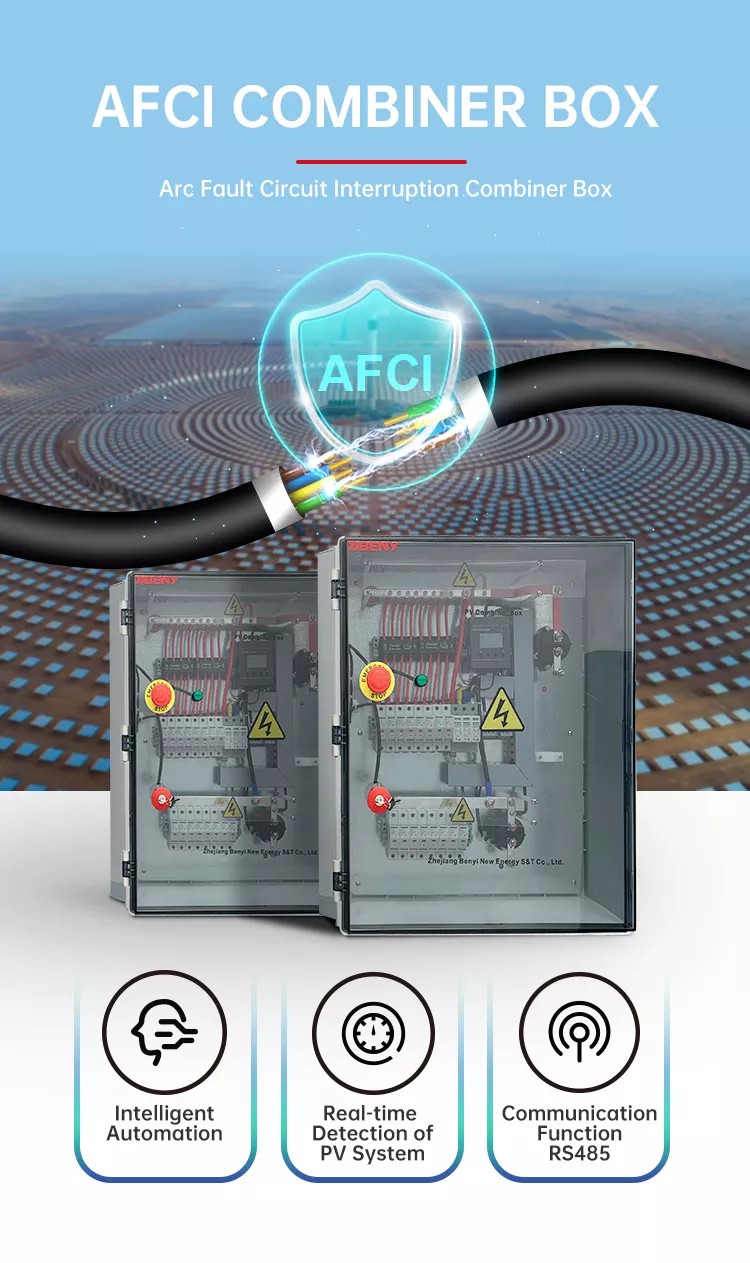

BHSZ -8/1 1000V AFCI Combiner Box for Solar PV

-Intelligent Automation
Remotely control switch turning on and off
-Real-time Detection of PV System
Detect your PV System such as electric current, voltage, the temperature level of combiner box , lightning arrester ,DC vacuum contactor and DC arc fault.
-Communication Function
Detects harmful arcing in DC circuits

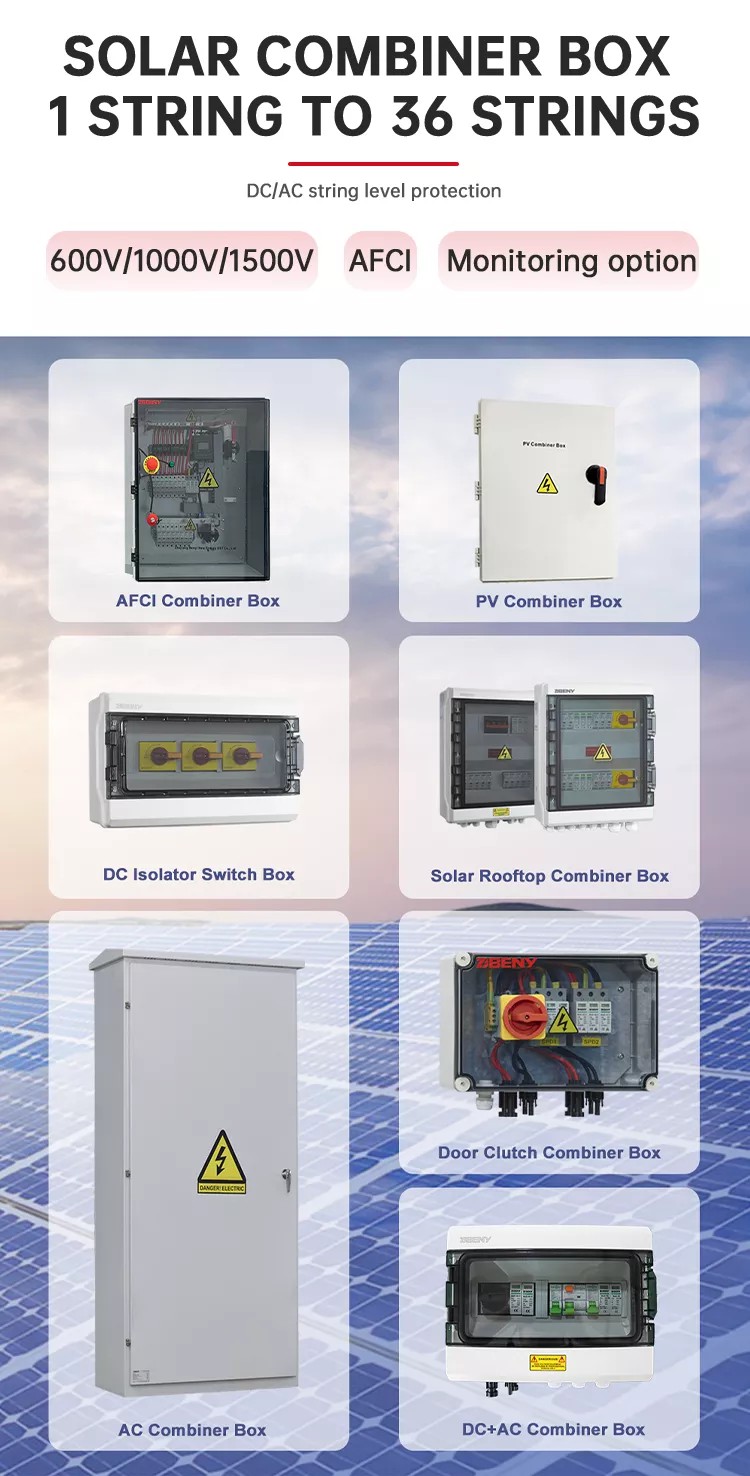

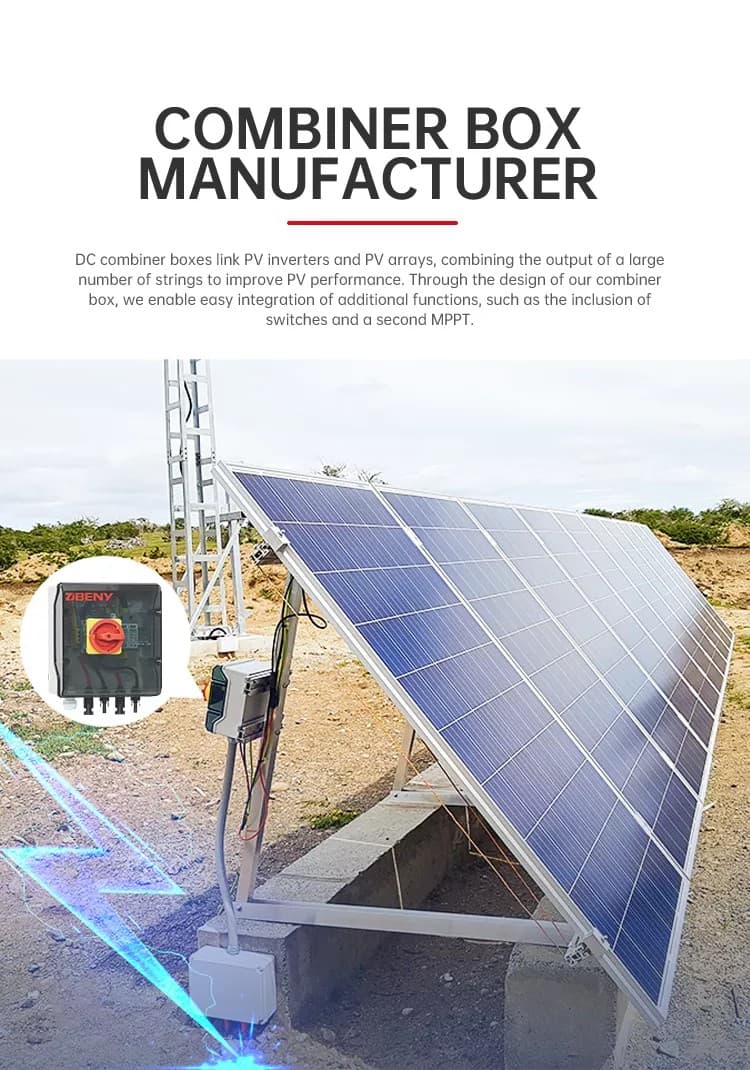

BENY Electric Solar Combiner Box 1 Strings to 36 Strings
600V/1000V/1500V/AFCI/Monitoring Option

BENY Electric with 30+ years experience of working in the electrical industry offers a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects.
*5 Years warranty
*600V/1000V/1500V
*AFCI Combiner Box

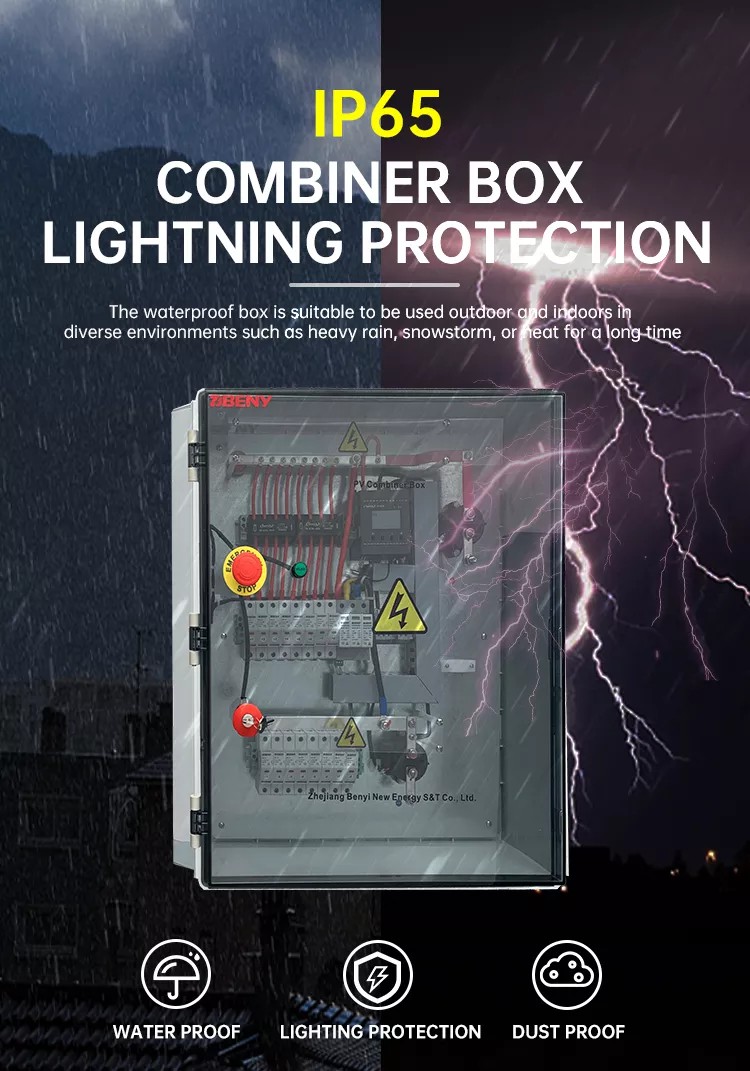

*IP65 Waterproof Enclosure
*Build-in UL98B listed DC switchgears
*From 1 to 24 strings customized solutions
*Design and customized at IEC 62109-1 with CE, and TUV certificates.
*Over-voltage, over-load, lightning protection; Real-time detection, long-distance communication.


Product Paramenters

General Data
Model No. BHS-8/1
Input 8 strings
Output 1 string
Max Rate Voltage 1000V
Max Input Current Per Each String 10A/15A/20A/25A/30A
Connection Type of Input PG09
MC4
Input Cable Size Φ4-8mm
Max Output Current 100A/125A/250A
Connection Type of Output PG 36,Φ22-23MM
Customizable
DC Surge Arrest T2/T1+2,In=20KA,Imax=40KA,Ucpv=600VDC
Voltage of Monitoring Device 450VDC~1000VDC
Voltage of Contactor 24VDC(Built-in Power Supply)
Enclosure Plastic
Powder Coated Stainless Steel
Protection Degree NEMA13(IP65)

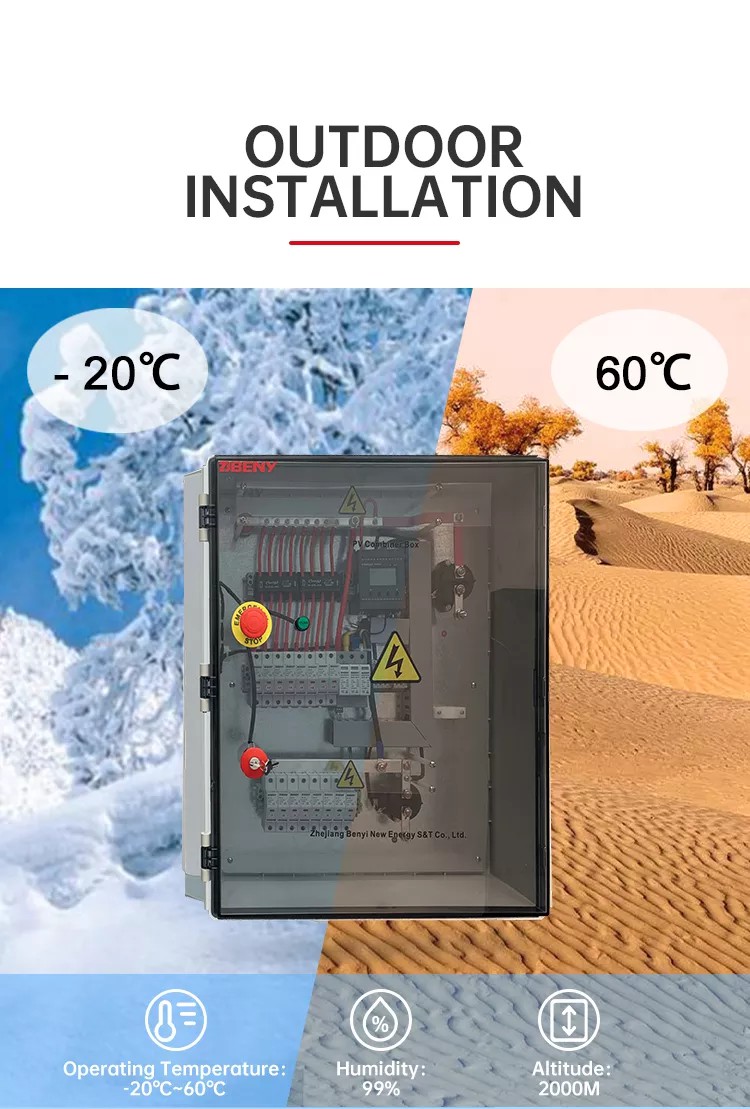

Ambient Temperture -20℃~+60℃
Humidity 0-99%
Altitude ≤2000M(derating>2000M)
Installation method Vertical/Horizontal
Standard IEC62109/IEC61439(EN62109/EN61439)


Company Profile

Click for more introduction of Beny.

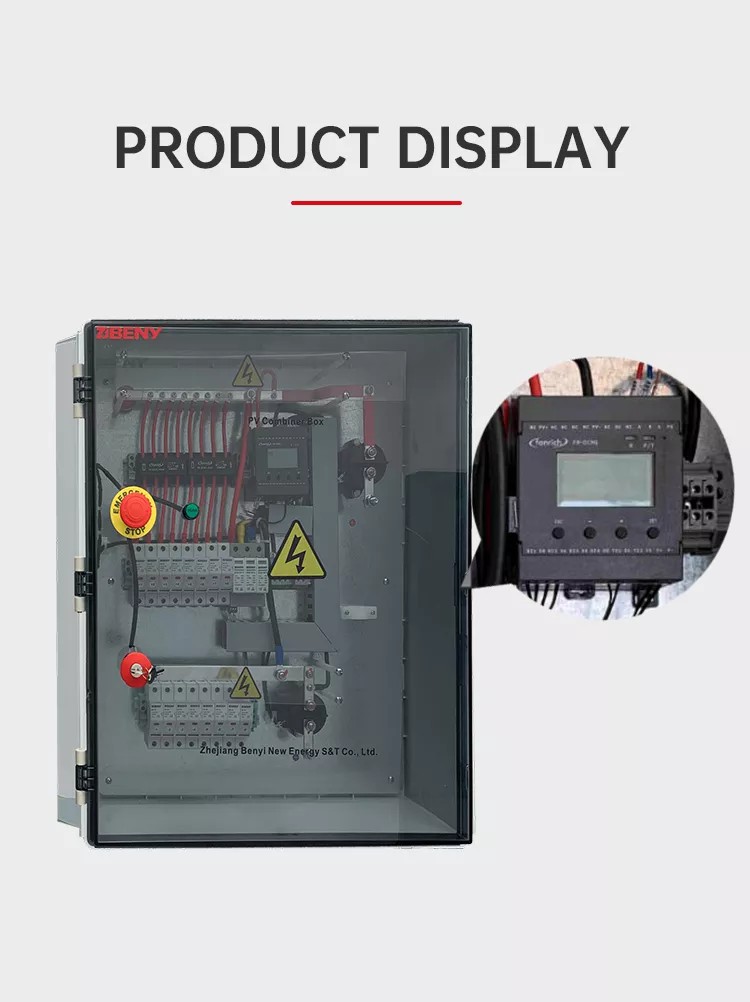

Details Images
