Focus on :

600V DC Combiner Box 2 In 2 Out with MC4 BHS-2-2M

Highlights:

    • 600V DC
    • 2 strings input, 2 strings output
    • Enclosure: BX-15
    • IP65 protect degree for outdoor and indoor
    • UV resistance, flame retardant PC material


SOLAR DC BOX BUILD-IN PREMIUM DC COMPONENTS FOR MAXIMUM PROTECTION

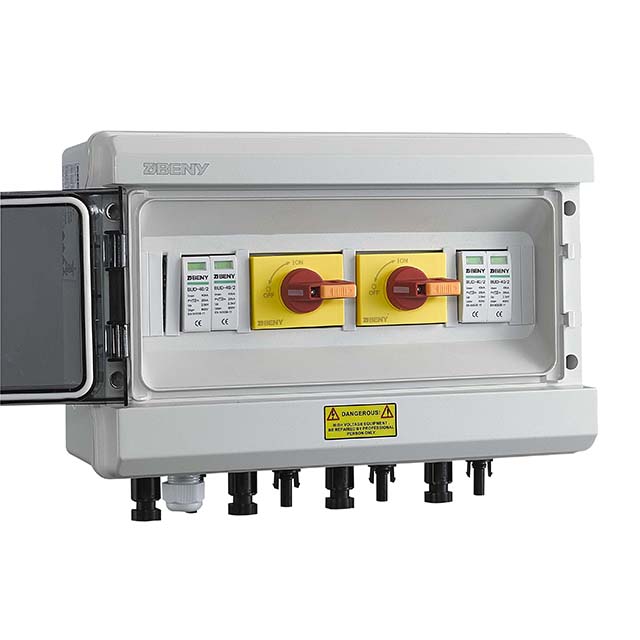

BHS-2/2M 600V solar box is equipped with two true solar DC disconnect switches.



And two 600V type 2 DC surge arresters for over-voltage protection.



All the true and reliable DC components are pre-assembled in a durable PC enclosure.



Pre-wired MC4 connectors on input and output for option.




SPECIFICATION

Model BHS-2/2M 600V
Certificate TUV
Standard IEC62109-1, IEC61439
Warranty 5 Years for any quality problems
Number of input strings 2
Number of output strings 2
Protection Degree IP65 (polycarbonate)
Dimension 330*210*122mm
