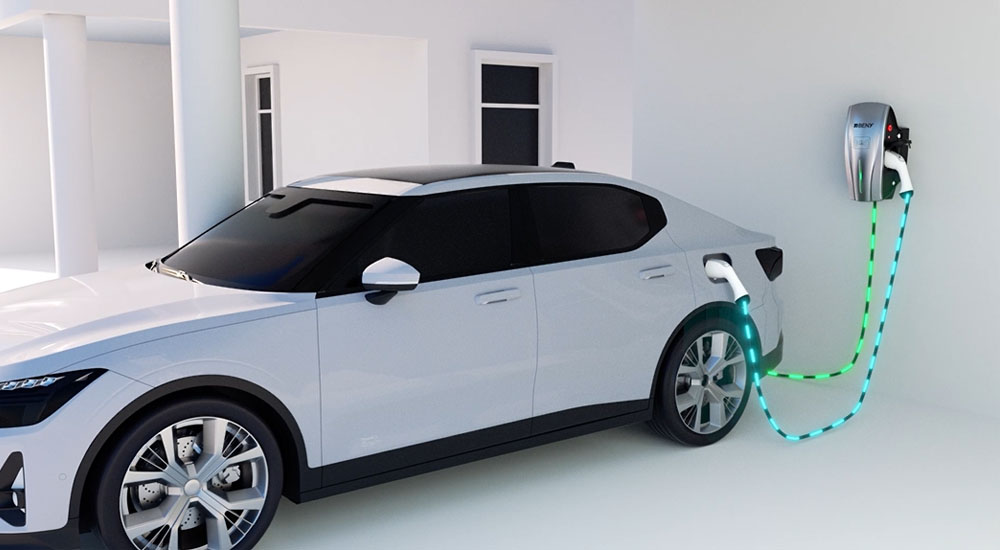

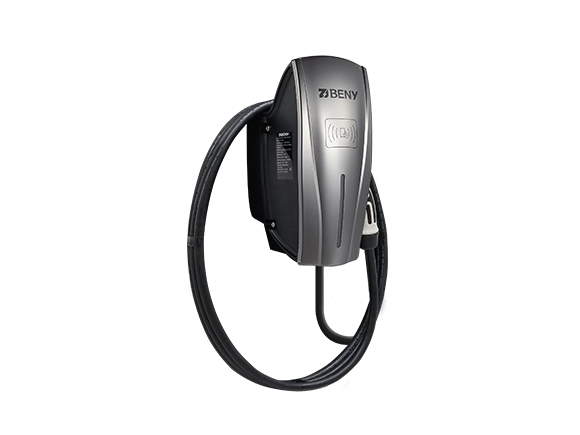

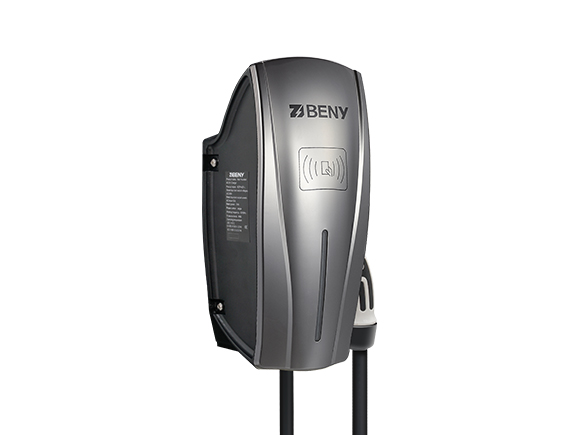

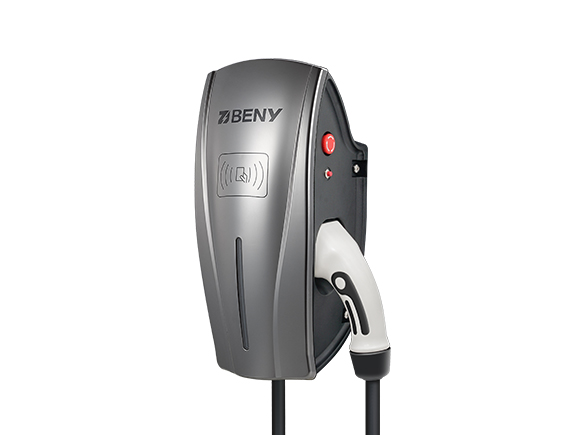

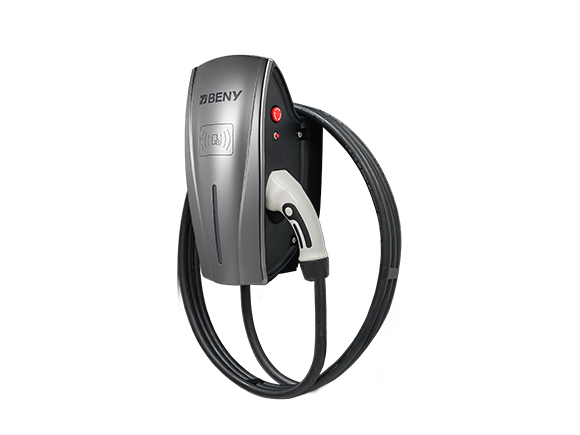

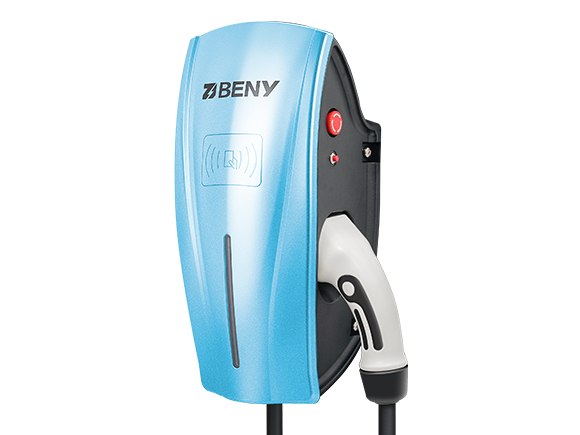

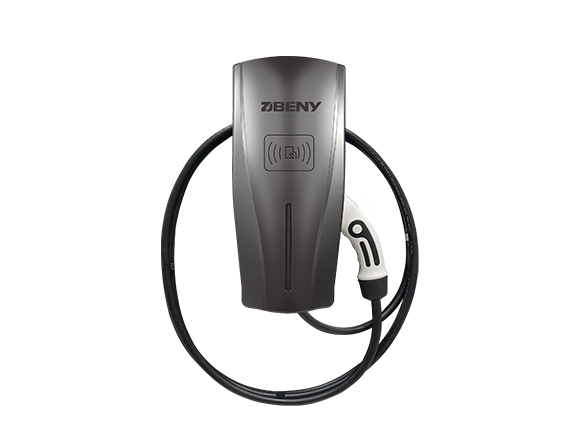

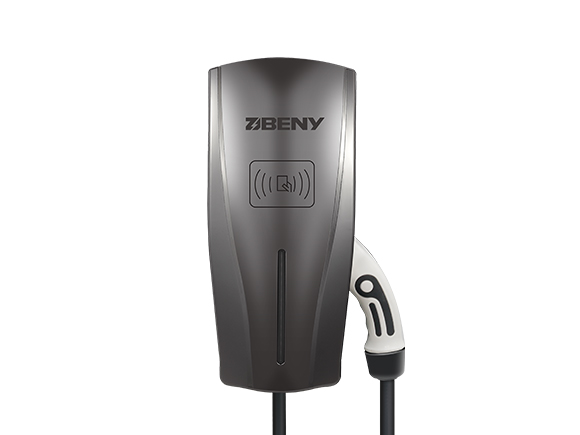

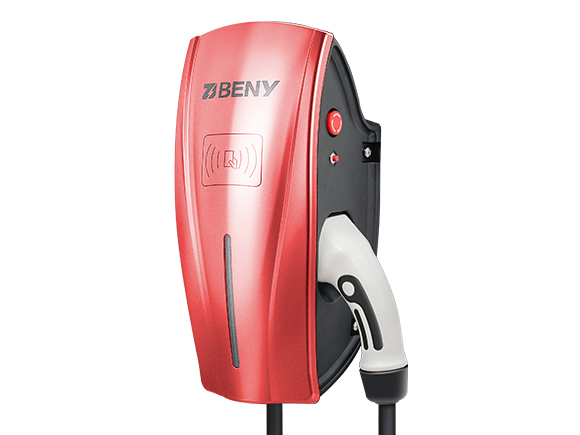

The simple non-smart EV charger BCP-A1-L has an IP65 patented design case for outdoor and indoor use.
The type 2 charging connector makes highly flexible and compatible with all electric vehicles.
Plug and start to charge automatic. (RFID card for option)
The EV charger output can be adjusted from 16 amps (11kW) all the way up to 32 amps (22kW)

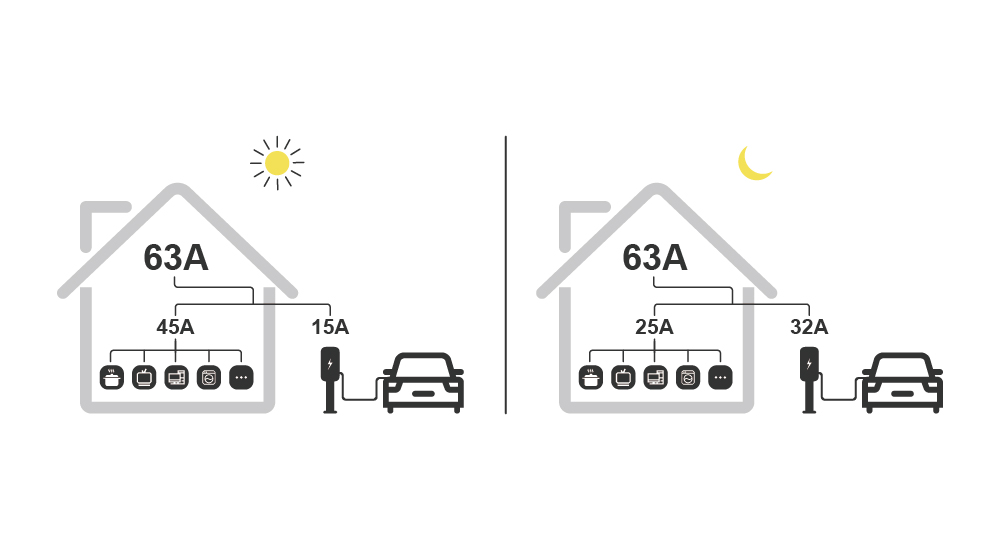

To safely balance the energy usage between your electric car chargers and other home appliances to make your car chargers in the most efficient way.

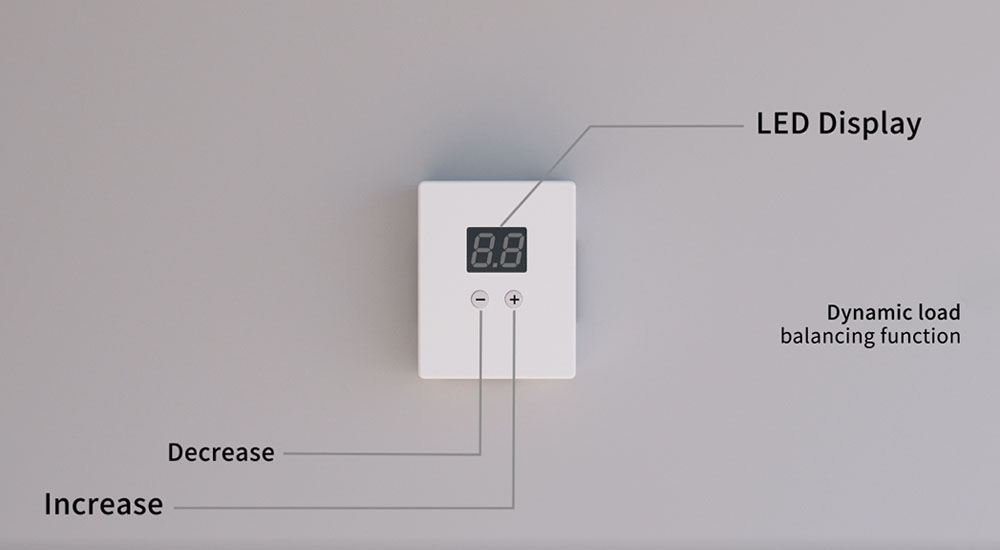

DLB (Dynamic Load Balancing) is available in the BENY BCP series AC EV Charger for home use,
when the EV charger is working with other household appliances at the same time,
the DLB box can maintain the dynamic balance of the total household current and ensure the safety of electricity to avoid home over load.
Monitors the electrical system and in the event of a fault automatically disconnects all poles including the earth conductor.
If the user uses an EV charger equipped with PEN protection, its internal design has a contactor to cut off the ground,
once the PEN line is cut off, the contactor KM1 and KM2 are immediately and automatically disconnected,
there is only a weak leakage current between CP and PE to L line,
its current value is less than 1mA, which is the smallest perceived leakage current of the human body, people can disengage themselves, no safety risks.

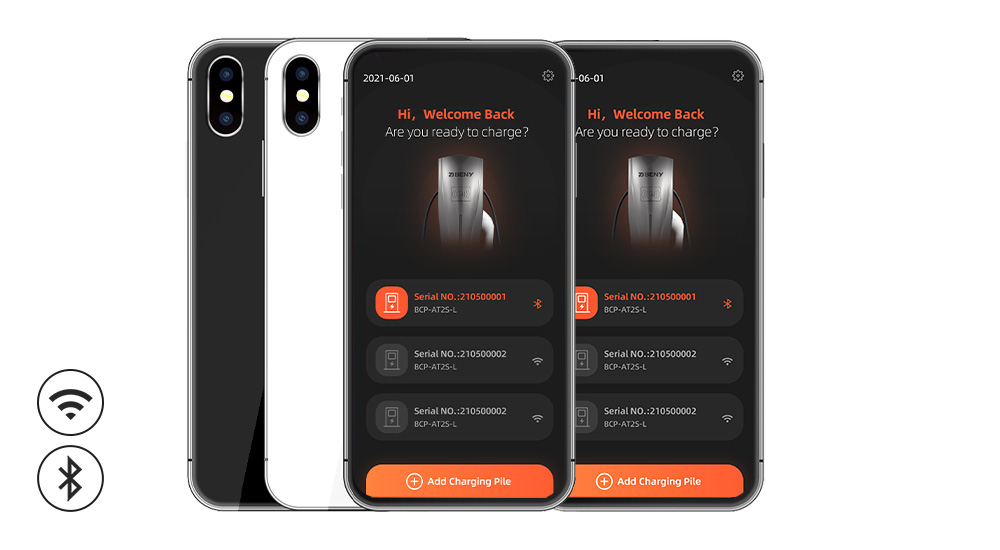

BENY EV chargers can be controlled by a smart APP via WIFI or Bluetooth connection:
One to one binding EV charger by resetting the password, prevent the EV charger being stolen;
View charging data and status;
Set up various charging configurations, charging current, DLB mode, etc.

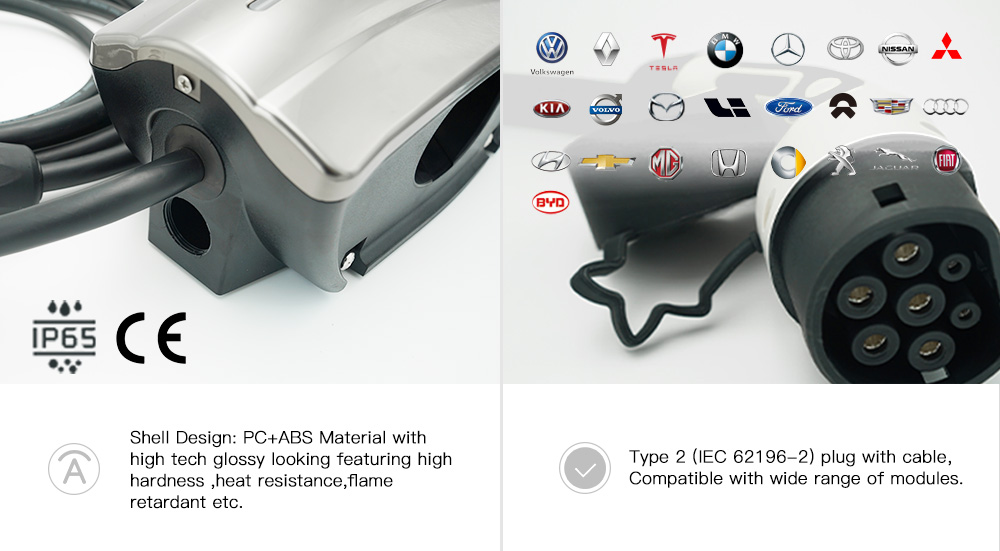

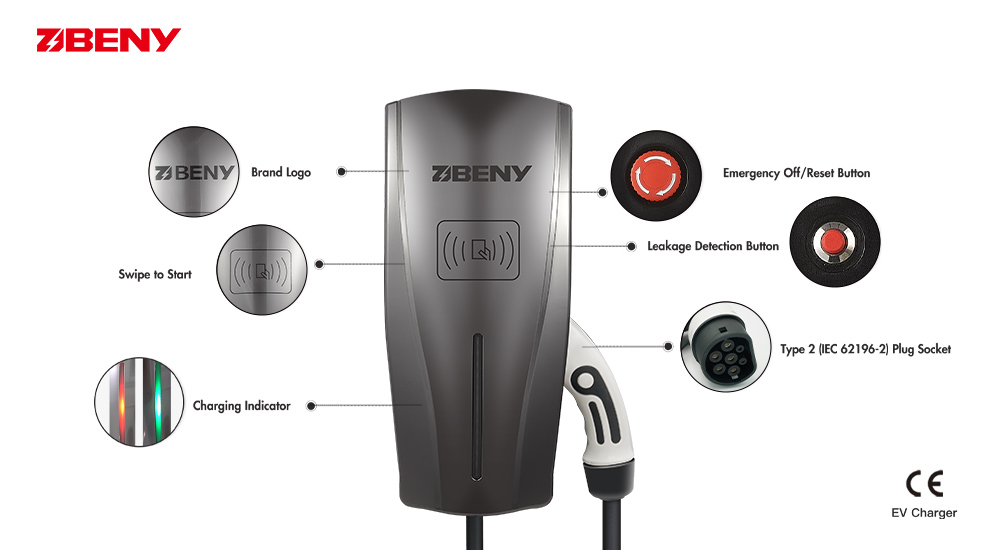

Type 2 (IEC 62196-2) plug with cable
|Charging capacity||1.3kW-7.4kW / 4.1kW-22kW|
|Charge mode||Mode 3 (IEC 61851-1)|
Selectable 1-phase or 3-phase, 230-400V
6 A to 32 A, 50-60 Hz
|Connector options||Fixed cable type 2 plug or type 2 Socket|
|Fixed cable length||6m (18 ft)|
|Cable Entry||Rear or bottom|
|Protection and certification|
|Build-in RCD||TYPE A + DC6mA leakage sensor built-in|
|With Cable||IP65, IK07|
|Housing fire ratings||V0|
|Operating temperature||-25 – +55℃|
CE EMC EU/2014
CE Low Voltage EU/2014/35
|Certificate||CE, UKCA, CB, RCM|
|Authorization||Auto-start standard / RFID card option|
|Status indication||LED ring|
|Charging protocol||OCPP 1.6J optional|
|WLAN communication||Wi-Fi / Bluetooth 4.2 option|
|Dimension||W169 x H380 x D151 mm|
|Mounting||Wall or Pole|
