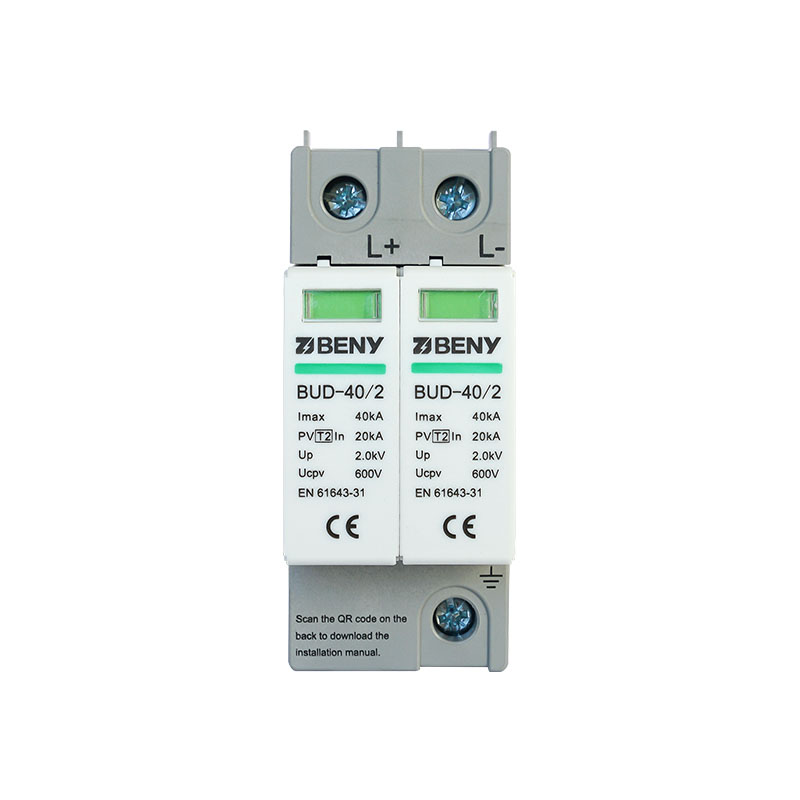

DC SPD Type2 600V BUD-40/2 IEC
Highlights:
- RoHS material
- 600V Type 2 DC SPD for solar PV application
- According to EN 50539-11, IEC 61643-31
- Thermal disconnect inside for fault indication
- 5 years warranty
| Model | BUD-40/2 |
| Moulds | 2 |
| SPD according to EN 50539-11 | Type 2 |
| Open Voltage Uoc Max | 600V |
| Max. discharge current (8/20 µs) [(DC+/DC-) –> PE] (Imax ) | 40KA |
| Nominal discharge current (8/20 µs) [(DC+/DC-) –> PE] (In ) | 20KA |
| Voltage protection level Up | ≤ 3.8KV |
| Response Time (tA ) | ≤ 25 ns |
| Operating state / fault indication | Green/Red |
| Remote Signalling Contact (optional) | Changeover contact |
| For mounting on | 35mm DIN rails |
| Degree of protection | IP20 |
| Certificate |
TUV |
