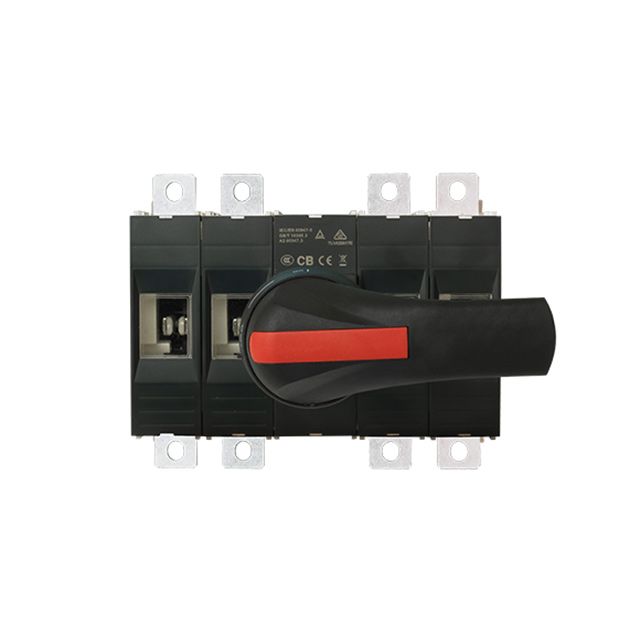

DC Disconnect Switch 1500V 400A BH-400-4P AS&IEC
Highlights:
- 1500V DC, 400A
- 4 Pole
- AS 60947.3 , IEC/EN 60947-3
- Reliable DC arc extinguishing technology with PCT patents
- Lockable handle
- Non-polar switch
- Modular and compact design
BENY BH -400 DC disconnect switch is designed and developed for solar PV inverter,combiner box or any DC equipments build-in according to lEC60947-3.
The DC load break switches provide safety isolationfor one DC circuit up to 1500vDC 400A.
* Non-polar switch
* Modular and compact design
* Reliable DC arc extinguishing technology with PCT patents
* High capacity 10KA for 50ms test.
* Lower power losing
| Model | BH-400-4P |
| Poles | 4P |
| Standard | IEC60947.3/ AS60947.3 |
| Rated Working Voltage (Ue) | 1000V/1500V |
| Rated Current (le) | 320A/400A |
| Rated impulse withstand voltage (Uimp) | 12kV |
| Rated short-time withstand current (1s)(lcw) | 10kA |
| Rated short-circuit making capacity (lcm) | 10kA |
| Rated conditional short-circuit current(kA) | 10kA |
| Utiizatin category DC | DC-PV2 |
| Number of cycles of operation(With current) | 200 |
| Number of cycles of operation(Without current) | 5000 |
| IP rating terminals | IP20 |
| Outside the ark handle | IP66 |
