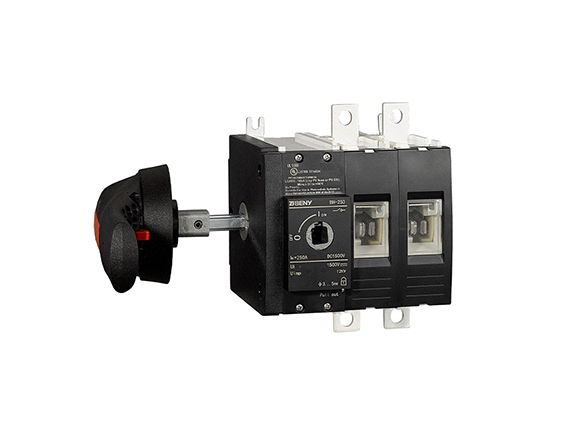

BH-250-2P switch can hold one DC string at 1500V, current up to 250A.
For solar inverter, combiner box and BESS application, the compact switch body brings cost-efficiency solutions.
* Non-polar switch
* Modular and compact design
* Reliable DC arc extinguishing technology with PCT patents
* High capacity 10KA for 50ms test.
* Lower power losing
| Model | BH-250-2P |
| Poles | 2P |
| Standard | UL98B |
| Rated Current | 250A |
| Rated Operational Voltage (Ue) | 1500V |
| Mechanical Cycle | 400 |
| Electrical Cycle | 400 |
| Protection Degree | IP20 switch body, IP66/X4 for enclosure |
| Polarity | No Polarity |
| Certificate | UL |
