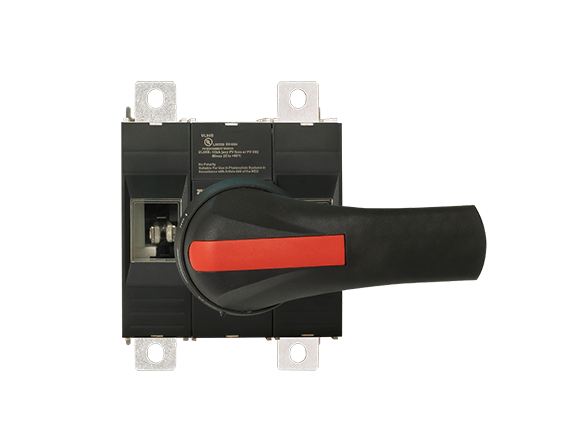

DC Disconnect Switch 1000V 400A BH-400-2P UL Listed
Highlights:
- 1000V DC, 400A
- 1500V DC, 400A
- 2 Pole
- UL98B
- Reliable DC arc extinguishing technology with PCT patents
- Lockable handle
- Non-polar switch
- Modular and compact design
BENY BH -400 DC disconnect switch is designed and developed for solar PV inverter,combiner box or any DC equipments build-in according to UL98B.
The DC load break switches provide safety isolation for one DC circuit up to 1500vDC 400A.
* Non-polar switch
* Modular and compact design
* Reliable DC arc extinguishing technology with PCT patents
* High capacity 10KA for 50ms test.
* Lower power losing
| Model | BH-400-2P |
| Poles | 2P |
| Standard | UL98B |
| Rated Working Voltage ( Ue) | 1000V/1500V |
| Rated Current ( le) | 320A/400A |
| Rated impulse withstand voltage ( Uimp) | 12kV |
| Rated short-time withstand current ( lcw) | 10kA/50ms |
| Rated short-circuit making capacity ( lcm) | 10kA/50ms |
| Rated conditional short-circuit current ( kA) | 10kA |
| Number of cycles of operation(With current) | 400 |
| Number of cycles of operation(Without current) | 5000 |
| IP rating terminals | IP20 |
| Outside the ark handle |
IP65 |
