Focus on :

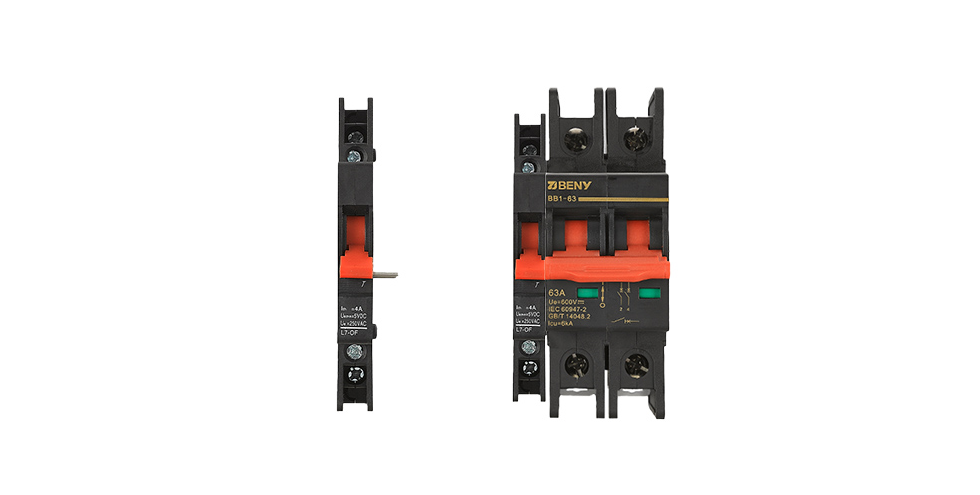

Mini Circuit Breaker up to 1200V BB1-63 UL

Solar DC mini circuit breaker

The BB1-63 modular miniature circuit-breakers can be used in solar DC circuits up to 1200 VDC (4-poles execution). Application in solar DC circuits, battery energy storage systems and UPS.

Arc flash barrier design keeps solar equipment more safe and reliable.

For DC circuit over-current protection.

Features:

Non-polarity DC breaker

Up to 1200V 63A

UL489B

Arc flash barriers keep the systems safety

IP65 PC enclosure is optional





SHUNT RELEASE AND AUXILIARY CONTACT FOR BB1-63

●Shunt Release and Auxiliary contacts for installation devices BB1-63

●Shunt trip releases and Auxiliary contacts



Model

BB1-63

Poles

2P 4P

Standard

UL489B

Utilization Category

DC-21B

Rated Operational Voltage (Ue)

600V,1200V

Rated Current

3A 4A 6A 10A 13A 16A 20A 25A 32A 40A 50A 63A

Mechanical Cycle

10000
