Focus on :

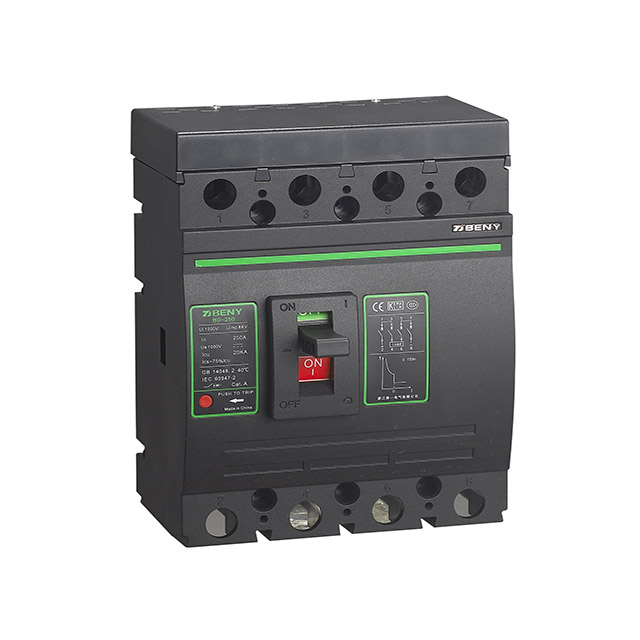

DC Molded Case Circuit Breaker 1000V 250A BD-125/ BD-250 IEC

Highlights:

    • IEC 60947-2 standard
    • Can be applied in grounded or ungrounded systems
    • Tested to extreme ambient conditions from –40 to 85º C
    • Available up to 65A-250A 1000V
    • 5 years warranty for free replace

DIRECT CURRENT MOLDED CASE CIRCUIT BREAKER FOR SOLAR PV APPLICATION


The BENY Electric BD series DC circuit breakers meet IEC standards for protecting and isolating DC circuits up to 1000V and 65A to 250A rated operating current.



The breakers are designed for applications including solar photovoltaic, electric vehicle charging stations, commercial battery storage and UPS applications.



For DC circuit over-current protection and controlling.





SPECIFICATION

Model BD-125; BD-250
Poles 2P ,4P
Standard IEC60947.2
Utilization Category DC-21B
Rated Operational Voltage (Ue) 1000V
Rated Current 65A,80A,100A,125A; 160A,200A,250A
Mechanical Cycle 14000
Electrical Cycle 5000
Protection Degree IP20 body
Polarity No Polarity
Certificate TUV
