Focus on :

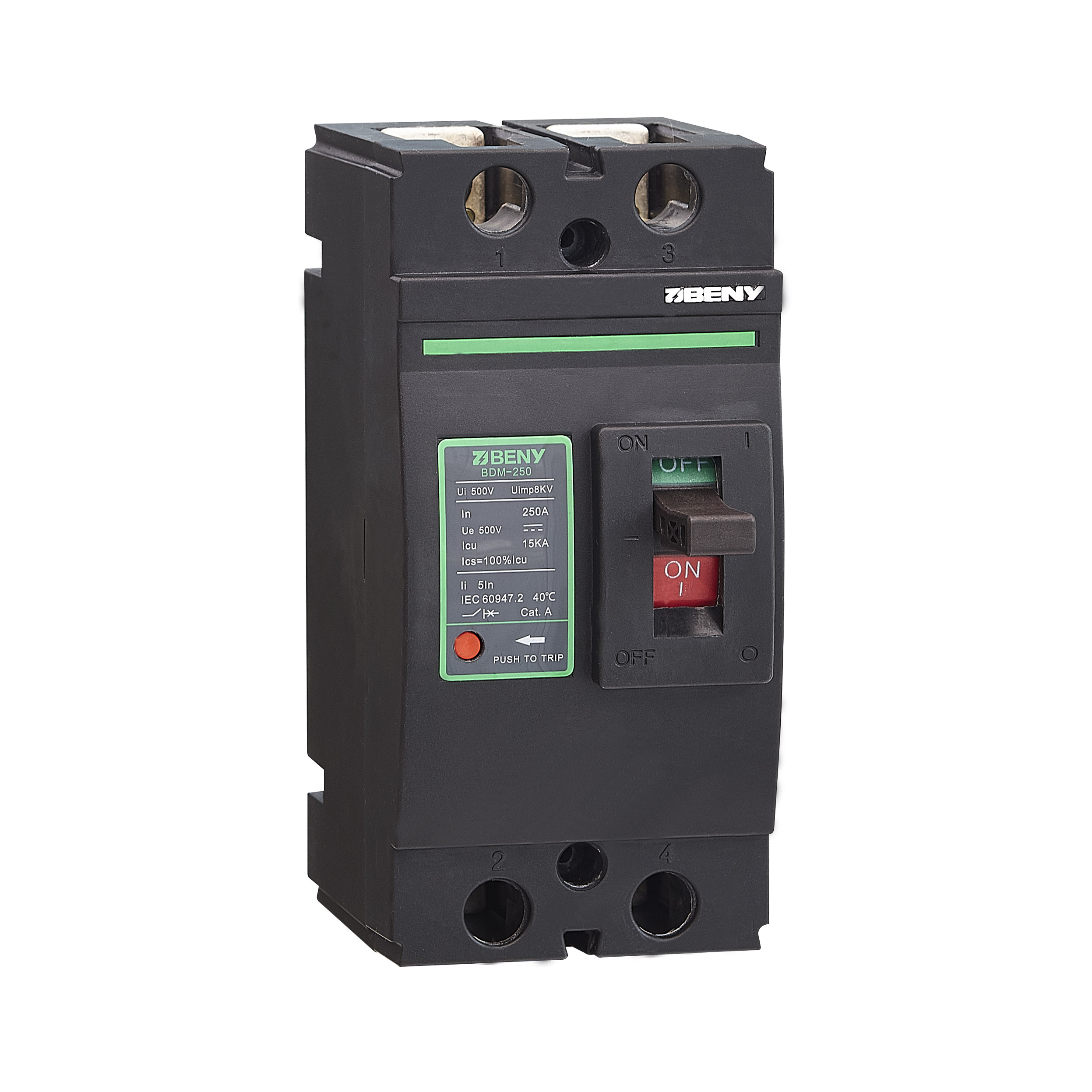

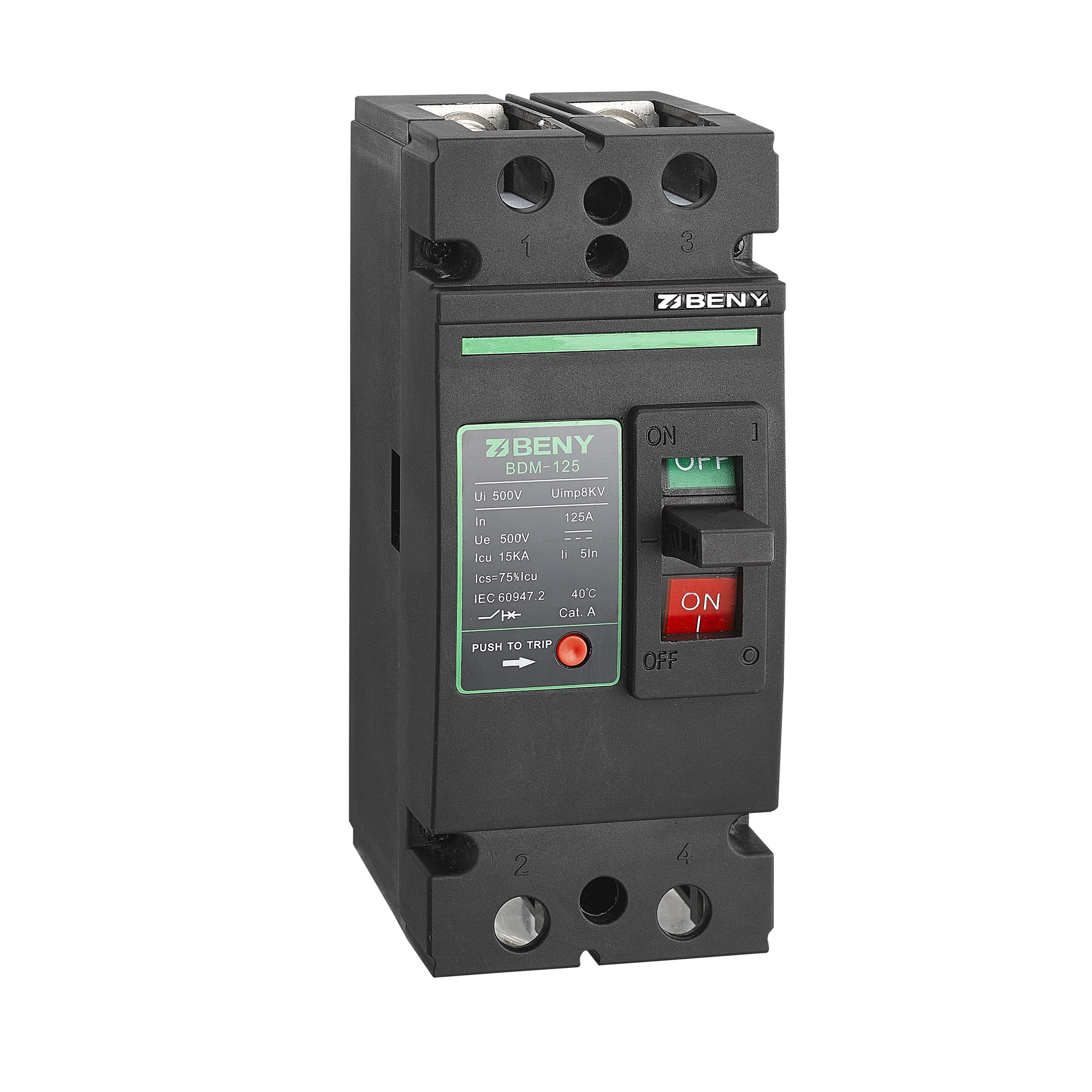

DC Breaker for Battery Energy Storage Systems 500V 250A BDM-125/ BDM-250 IEC&AS

Highlights:

    • IEC 60947-2 standard

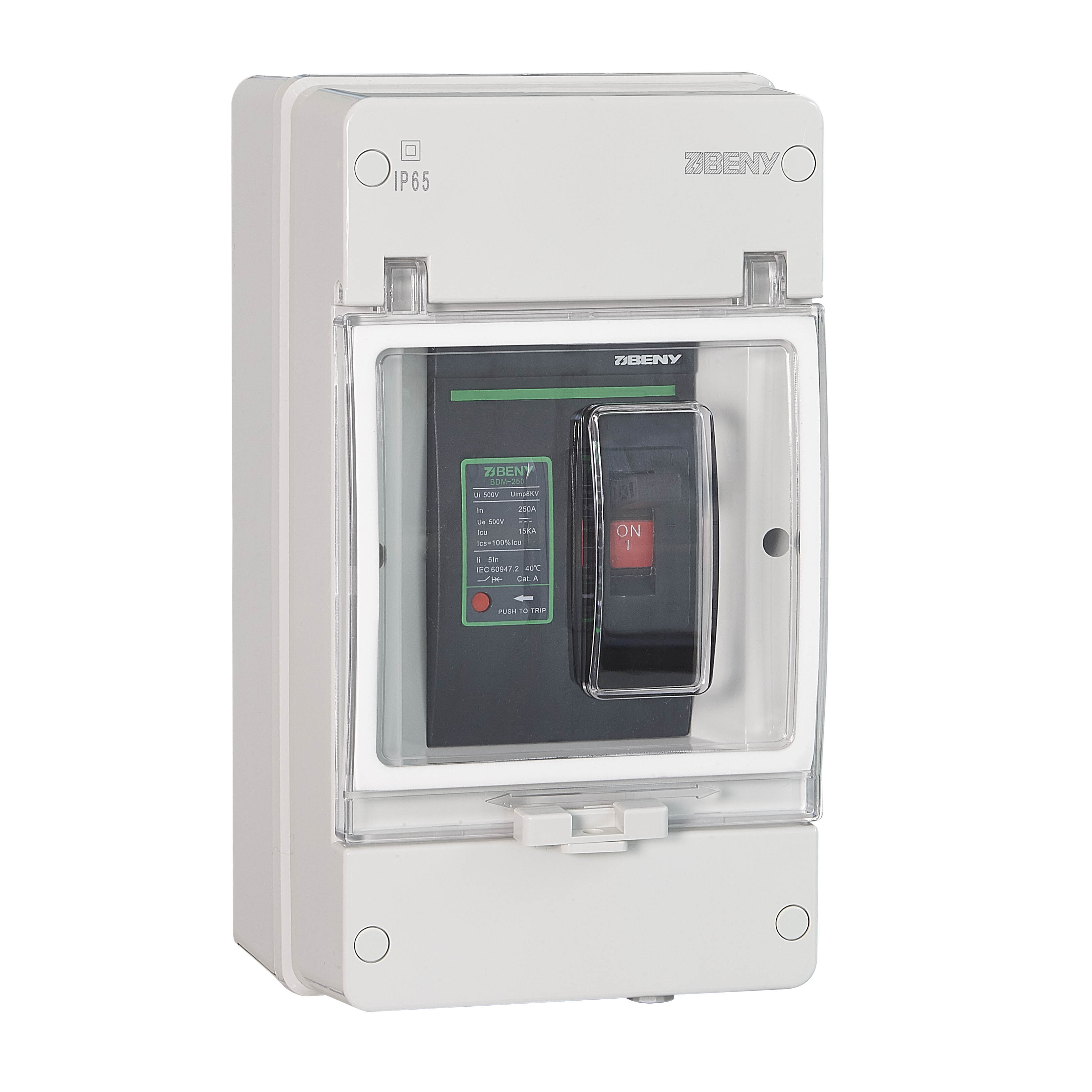

    • IP65 UV resistance enclosure for outdoor installation is optional
    • Can be applied in grounded or ungrounded systems
    • Tested to extreme ambient conditions from –40 to 85º C
    • Available up to 65A-250A 500V
    • Lockable transparent cover
    • 5 years warranty for free replace

DIRECT CURRENT MOLDED CASE CIRCUIT BREAKER FOR COMMERCIAL SOLAR PV BATTERY ENERGY STORAGE SYSTEMS (BESS) AND UPS APPLICATIONS


The BESS systems including batteries requires reliable and safety protection and isolating devices.



The BENY Electric BDM series DC circuit breakers meet IEC standards for protecting and isolating DC circuits up to 500V and 80A to 250A rated operating current.



The BDM breakers are designed for applications including solar photovoltaic, electric vehicle charging stations, commercial battery storage and UPS applications.



For DC circuit over-current protection and controlling.


SPECIFICATION

Model BDM-125; BDM-250
Poles 2P
Standard IEC60947.2
Utilization Category DC-21B
Rated Operational Voltage (Ue) 500V
Rated Current 65A,80A,100A,125A; 160A,200A,250A
Mechanical Cycle 10000
Electrical Cycle 2000
Protection Degree IP20 body
Polarity No Polarity
Certificate TUV
