DC Isolator Box IP65 Enclosure Six Strings BHS-6

Highlights:

    • IP65
    • 3ms arc suppression
    • Lockable at off position

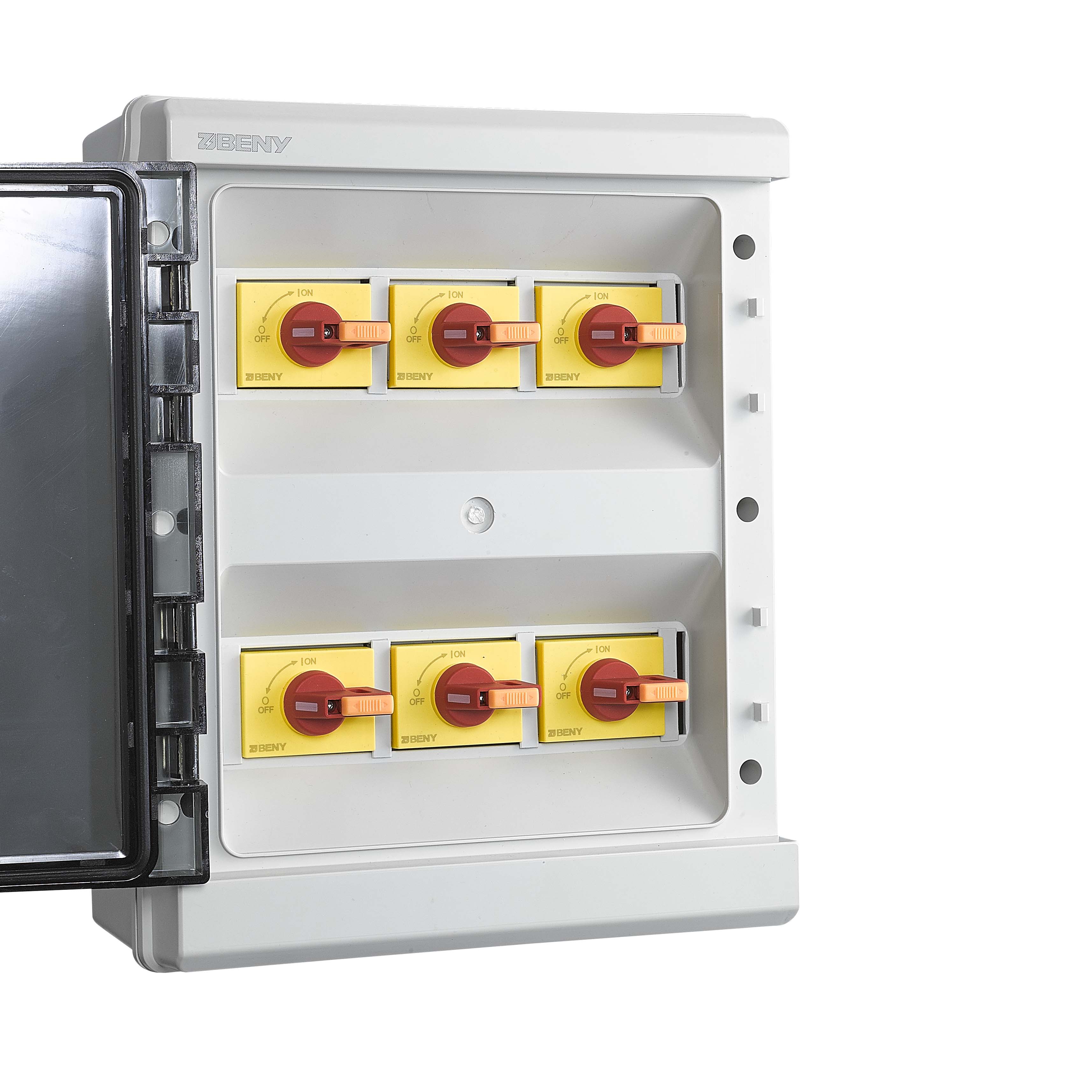

DC ISOLATOR SWITCH BOX BHS-6


The isolator box is most used in six strings solar commercial system.



Anti-UV and fire resistance PC enclosure protects the DC components from sunlight and water entry, the box cover is lockable.



Inside the box including six din rail mounting DC switches up to 40A according to IEC 60947.3 and AS60947.3 PV2, lockable handle for safe using and maintaining.





SPECIFICATION

Model BHS-6
Poles 2P  4P
Standard IEC60947.3,AS60947.3:2018
Utilization Category DC-PV2 / DC-21B
Rated Operational Voltage (Ue) 600V,800V,1000V,1200V
Certificate SAA / TUV / CE
Rated Current 9A-40A
Mechanical Cycle 15000
Electrical Cycle 1000
Protection Degree IP65 enclosure/IP20 switch body
