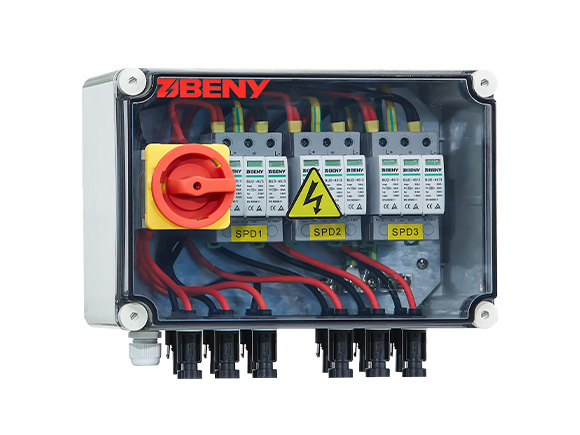

600V/1000V Door Clutch DC Box 3 In 3 Out BHS-3/3
Highlights:
- 3 In 3 Out
- 600VDC / 1000VDC
- UL508i Approval, IEC60947-3 PV2
- IP66 Enclosure
IP66 DC string box is designed for 3 string PV system.
For surge protection and isolating at solar DC side.
| Specification | ||
| Model Number | BHS-3/3 | |
| Input | 3 string | |
| Output | 3 string | |
| Max Voltage | 600V | 1000V |
| Short Circuit Current per Input (Isc) | 15A-30A (changeable) | |
| Max Current Output | 50A | 50A |
| Enclosure | ||
| Material | Polycarbonate | |
| Degree of Protection | IP66 | |
| Impacts | IK10 | |
| Dimensions (W*H*D) | ||
| Input Cable Glands | PG09, 2.5-16 | |
| Output Cable Gland | PG21, 2.5-16 | |
| Environment | ||
| Operating temperature | -25℃ – +60℃ | |
