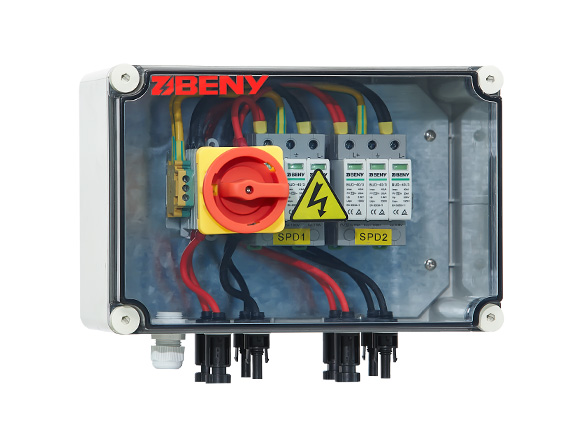

600V/1000V Door Clutch DC Box 2 In 2 Out BHS-2/2

Highlights:

    • 2 In 2 Out
    • 600VDC / 1000VDC
    • UL508i Approval, IEC60947-3 PV2
    • IP66 Enclosure

2 IN 2 OUT 600VDC / 1000VDC DOOR CLUTCH DC BOX


IP66 DC string box is designed for 2 string PV system.



For surge protection and isolating at solar DC side.





SPECIFICATION

Specification
Model Number BHS-2/2
Input 2 string
Output 2 string
Max Voltage 600V 1000V
Short Circuit Current per Input (Isc) 15A-30A (changeable)
Max Current Output 50A 50A
Enclosure
Material Polycarbonate
Degree of Protection IP66
Impacts IK10
Dimensions (W*H*D)
Input Cable Glands PG09, 2.5-16
Output Cable Gland PG21, 2.5-16
Environment
Operating temperature -25℃ – +60℃
