Focus on :

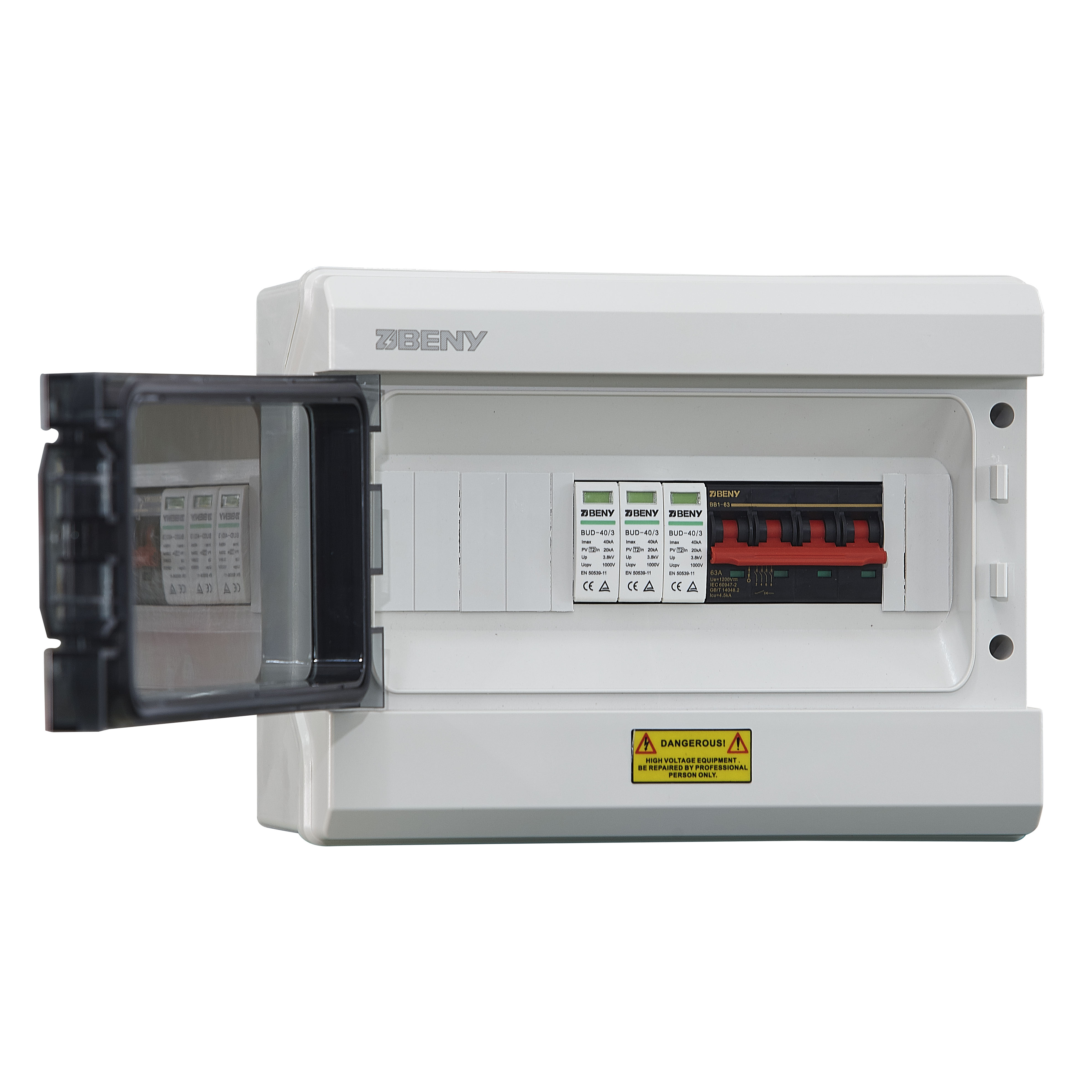

600V/1000V DC Combiner Box 1 In 1 Out BHS-1/1

Highlights:

    • 600V DC/ 1000V DC
    • 1 Input 1 Output
    • IP65
Products Description
BHS-1/1 600V DC Combiner Box for Solar PV
-Installed between solar panels and solar inverter.
-Protections including over-voltage, over-load for longer the solar system working life.
-Equipped with the most reliable DC components bring maximum protection.


BENY Electric Solar Combiner Box 1 Strings to 36 Strings
600V/1000V/1500V/AFCI/Monitoring Option
BENY Electric with 30+ years experience of working in the electrical industry offers a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects.
*5 Years warranty
*600V/1000V/1500V
*AFCI Combiner Box
*IP65 Waterproof Enclosure
*Build-in UL98B listed DC switchgears
*From 1 to 24 strings customized solutions
*Design and customized at IEC 62109-1 with CE, and TUV certificates.
*Over-voltage, over-load, lightning protection; Real-time detection, long-distance communication.
Product Paramenters
General Data
Model No.
BHS-1/1
Input
1 string
Output
1 string
Max Voltage
600V
Rated Current of DC breaker
15A
Max Current Output
63A
Enclosure

Material
Polycarbonate/ABS
Degree of Protection
IP65
Degree of Resistance to Impacts
IK10
Dimension(L*W*H)
BX-13:290*220*120mm
Input Cable Gland
PG09 2.5-16
Output Cable Gland
PG21 2.5-16
Company Profile

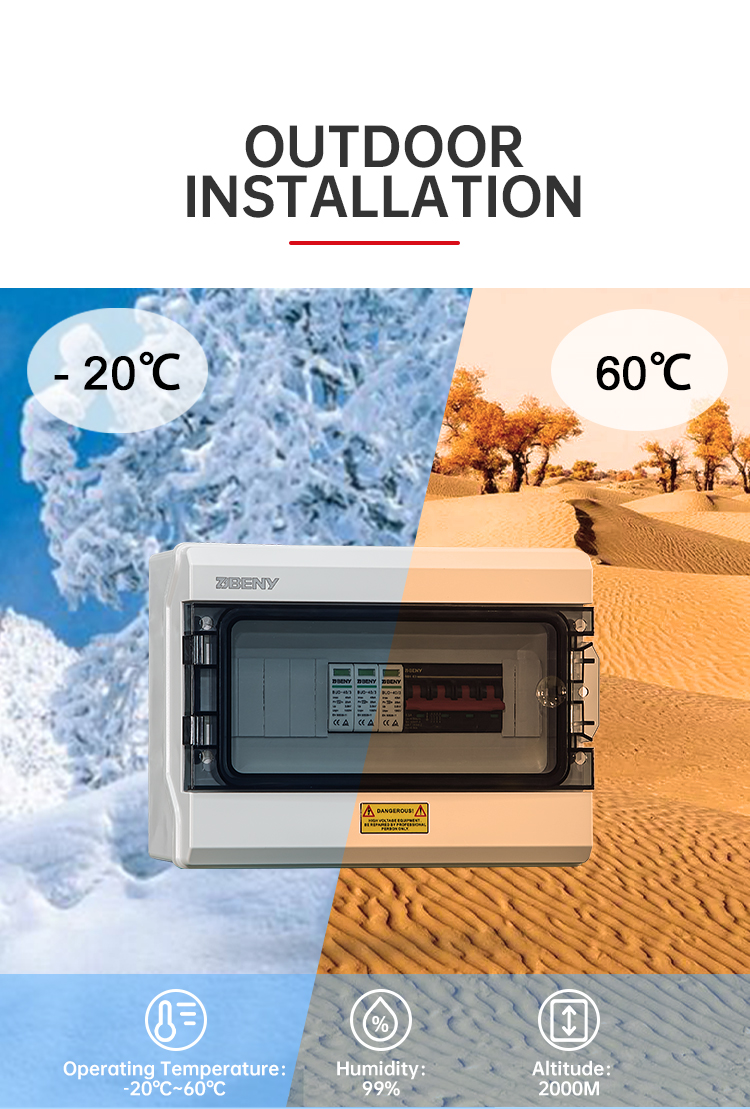

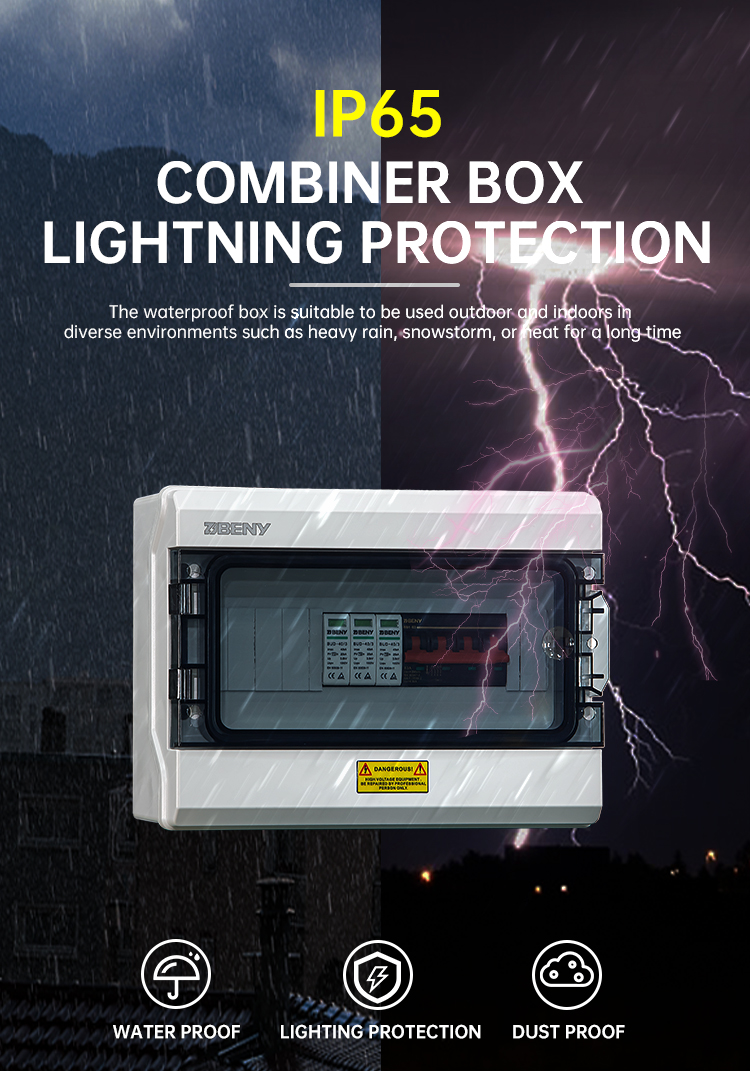

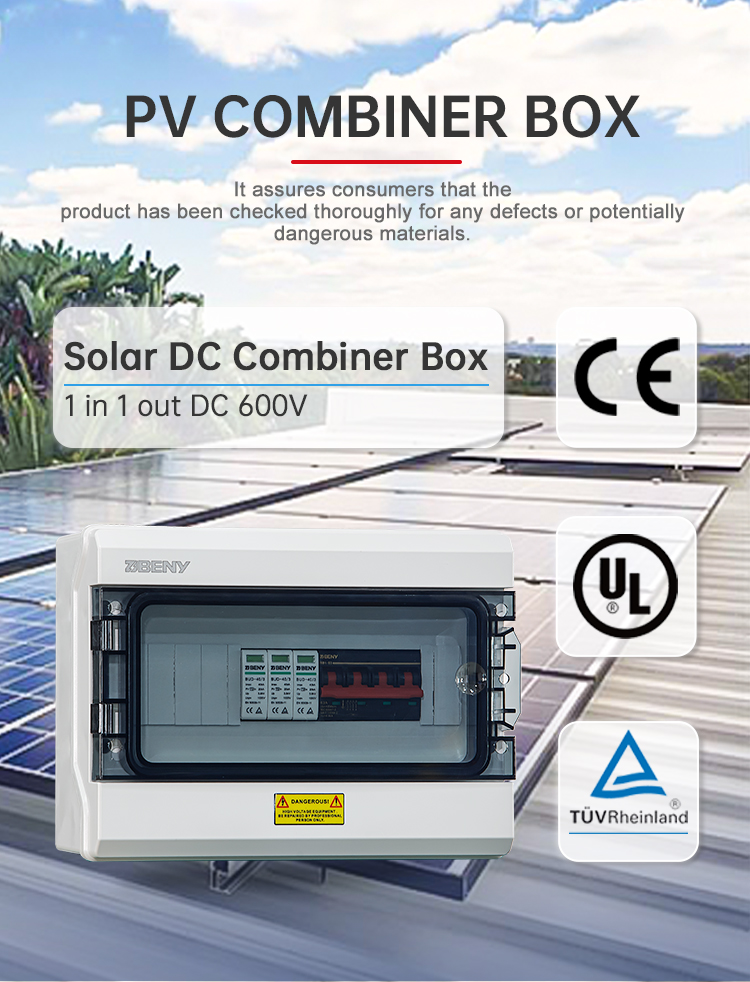

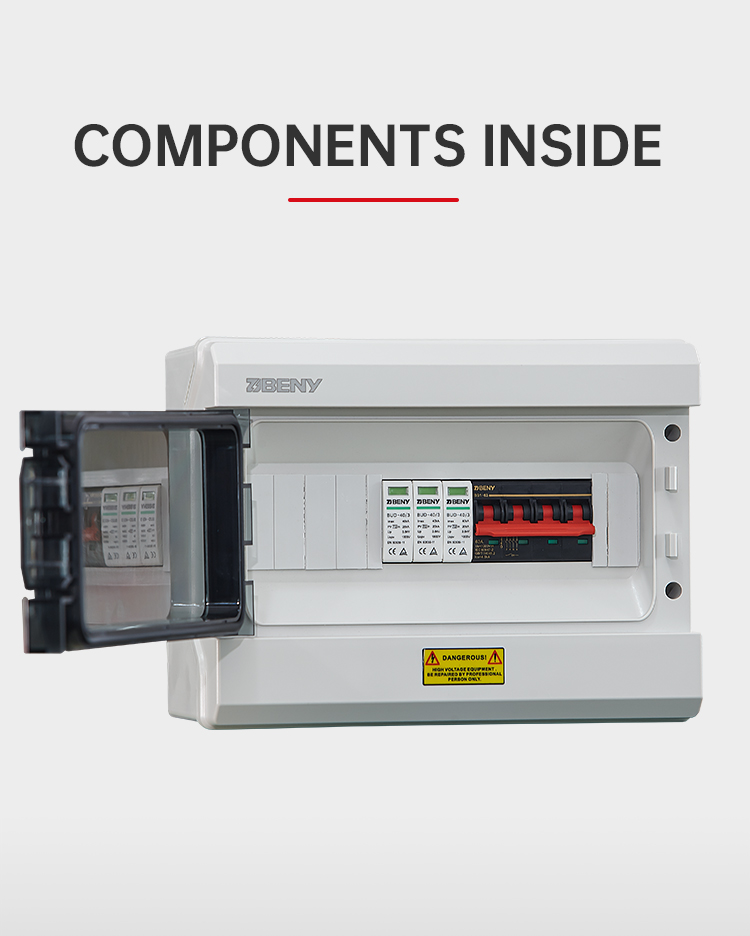

Details Images
