1000V DOOR CLUTCH DC BOX 4 IN 4 OUT BHS-4/4

Highlights:

4 In 4 Out
1000VDC
UL508i Approval, IEC60947-3 PV2
IP66 Enclosure

Products Description

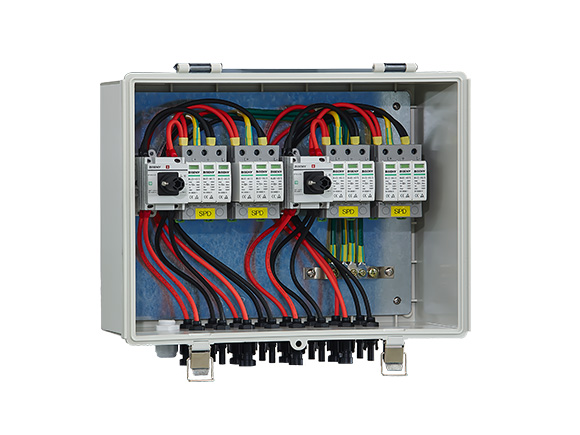

BHS-4/4 1000V DC Door Clutch Box for Solar PV

IP66 DC string box is designed for 3 string PV system. For surge protection and isolating at solar DC side.

BENY Electric Solar Combiner Box 1 Strings to 36 Strings

600V/1000V/1500V/AFCI/Monitoring Option

BENY Electric with 30+ years experience of working in the electrical industry offers a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects.
*5 Years warranty
*600V/1000V/1500V
*AFCI Combiner Box
*IP65 Waterproof Enclosure
*Build-in UL98B listed DC switchgears
*From 1 to 24 strings customized solutions
*Design and customized at IEC 62109-1 with CE, and TUV certificates.
*Over-voltage, over-load, lightning protection; Real-time detection, long-distance communication.

Product Paramenters

General Data
Model No.	BHS-4/4
Input	4 strings
Output	4 strings
Max Voltage	1000V
Short Circuit Current per Input(ISC)	12A-30A(changeable)
Max Current Output	50A
Enclosure
Material Type	Polycarbonate
Degree of Protection	IP65
Degree of Resistance to Impacts	IK10
Dimension（WHD）	300400180mm
Input Cable Glands	PG09 ,2.5-16mm²
Output Cable Gland	PG21 2.5-16mm²
