Focus on :

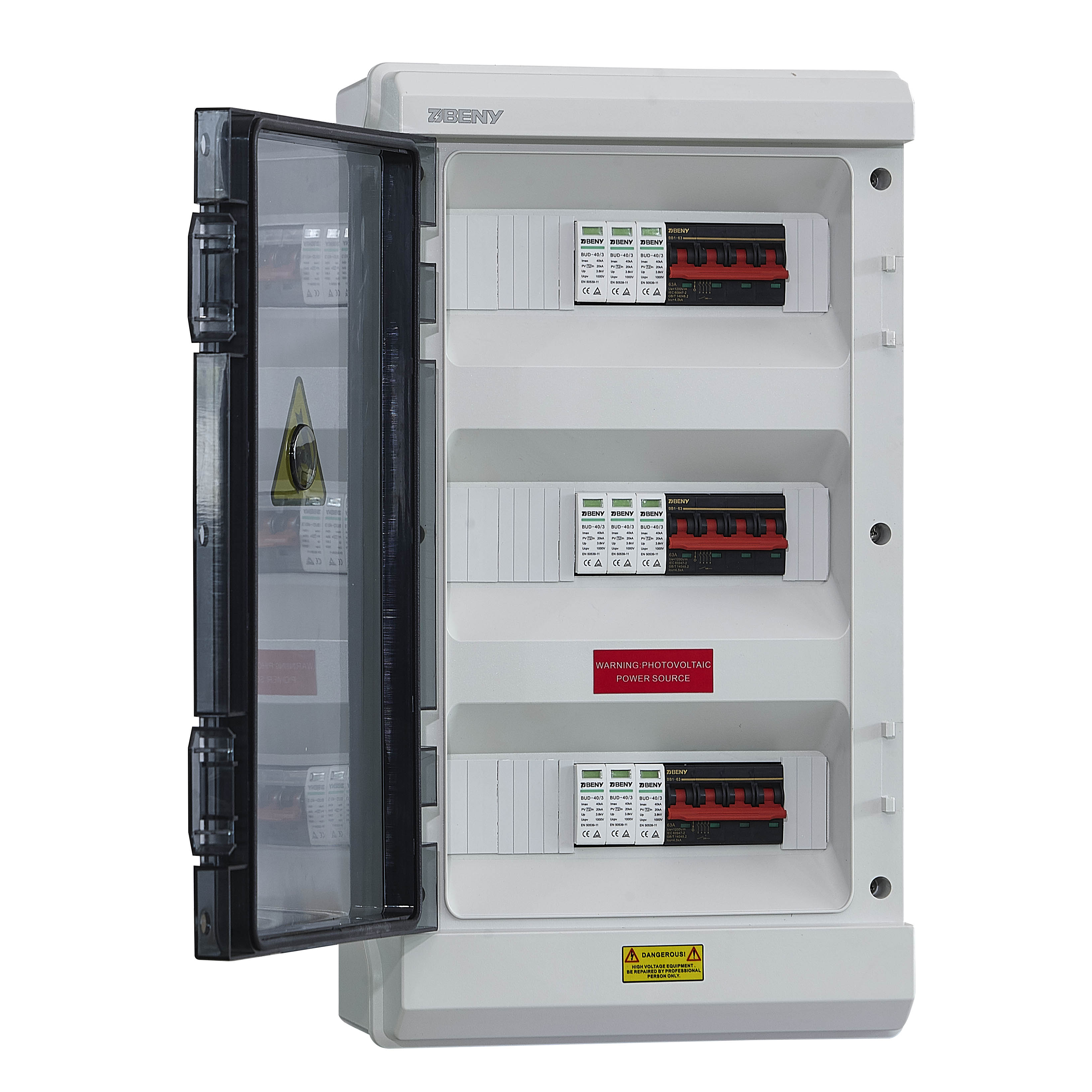

1000V DC Combiner Box 6 In 3 Out BHS-6/3

Highlights:

    • 1000V DC
    • 6 Input 3 Output
    • IP65
Products Description
BHS-6/3 1000V DC Combiner Box for Solar PV
-Installed between solar panels and solar inverter.
-Protections including over-voltage, over-load for longer the solar system working life.
-Equipped with the most reliable DC components bring maximum protection.


BENY Electric Solar Combiner Box 1 Strings to 36 Strings
600V/1000V/1500V/AFCI/Monitoring Option
BENY Electric with 30+ years experience of working in the electrical industry offers a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects.
*5 Years warranty
*600V/1000V/1500V
*AFCI Combiner Box
*IP65 Waterproof Enclosure
*Build-in UL98B listed DC switchgears
*From 1 to 24 strings customized solutions
*Design and customized at IEC 62109-1 with CE, and TUV certificates.
*Over-voltage, over-load, lightning protection; Real-time detection, long-distance communication.
Product Paramenters
General Data
Model No.
BHS-6/3
Input
6 strings
Output
3 strings
Max Voltage
1000V
Rated Current of DC breaker
40A/40A/40A
Max Current Output
40A/40A/40A
Enclosure

Material
Polycarbonate/ABS
Degree of Protection
IP65
Degree of Resistance to Impacts
IK10
Dimension(L*W*H)
313*55.*149mm
Input Cable Gland
PG09 2.5-16
Output Cable Gland
PG21 2.5-16
Company Profile

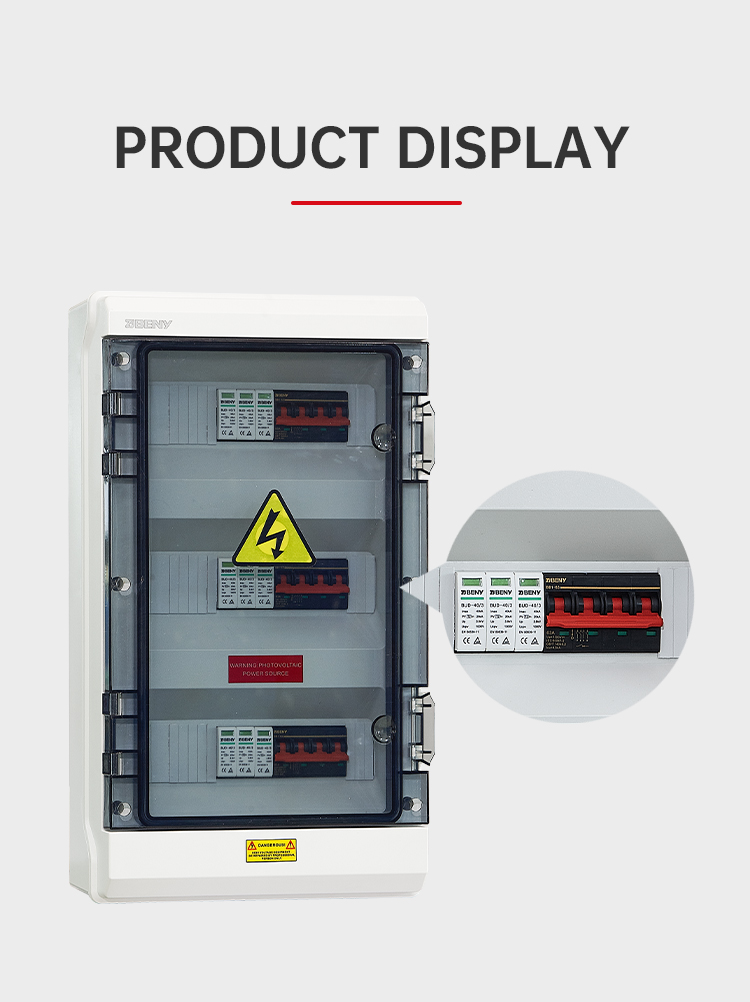

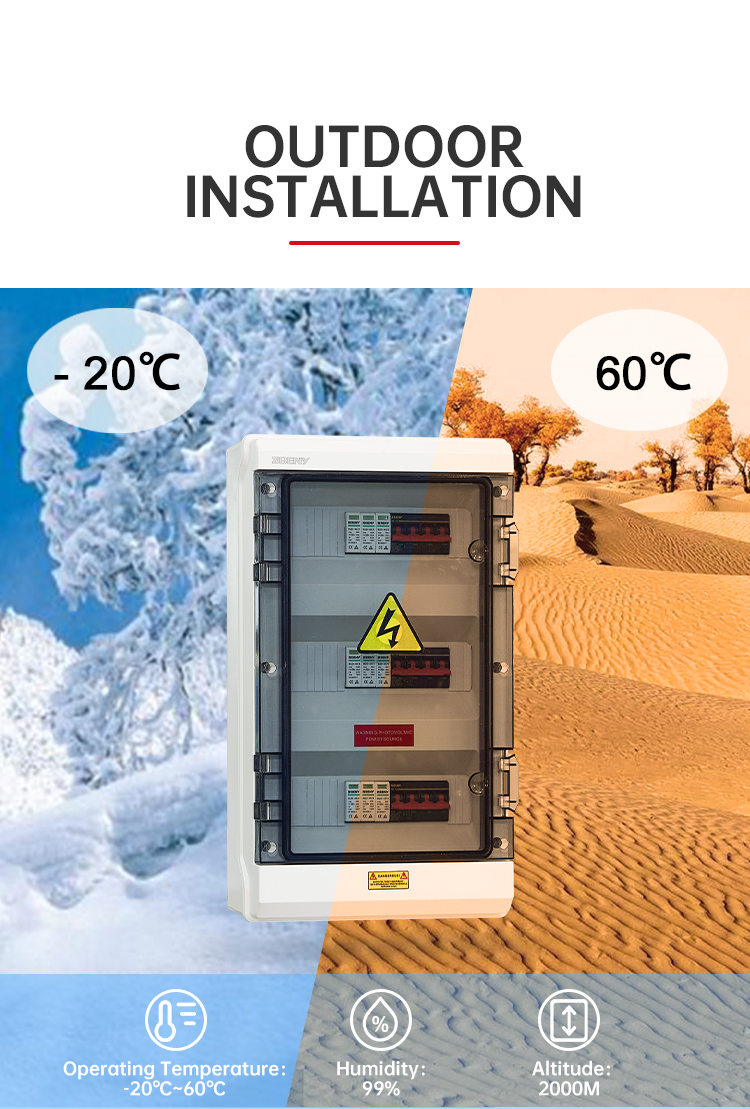

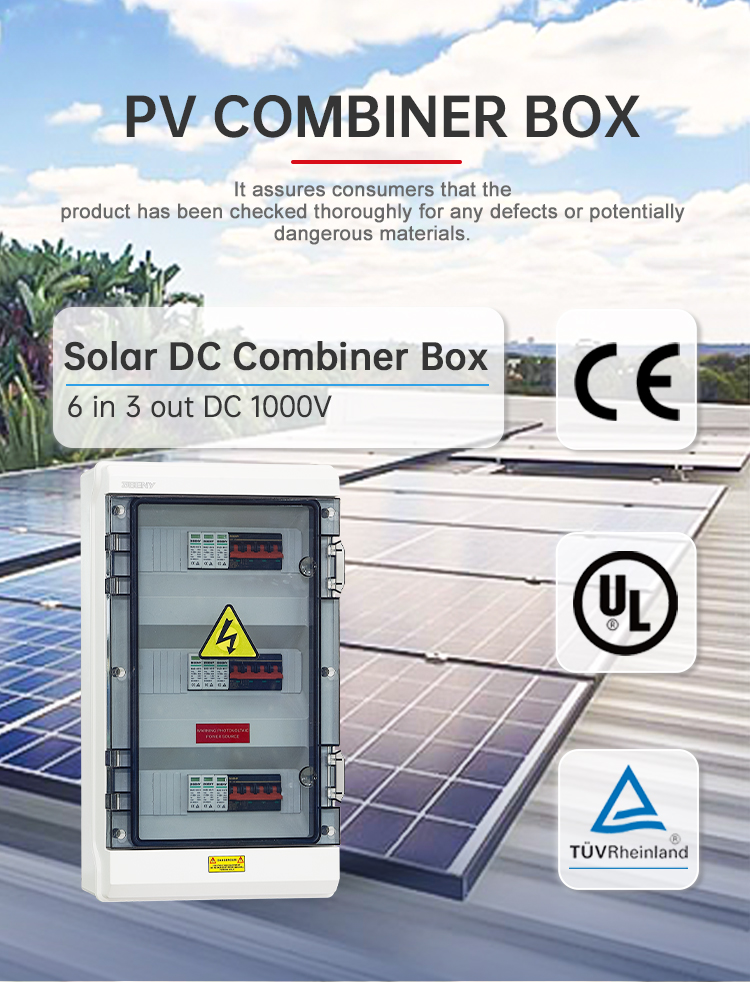

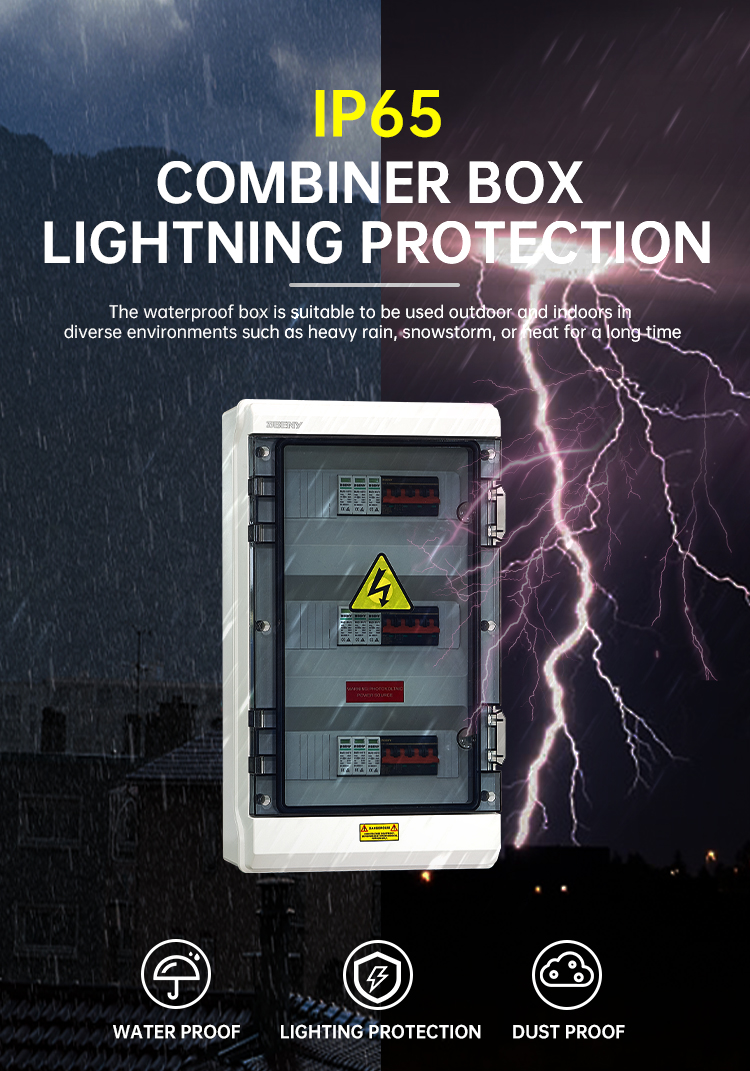

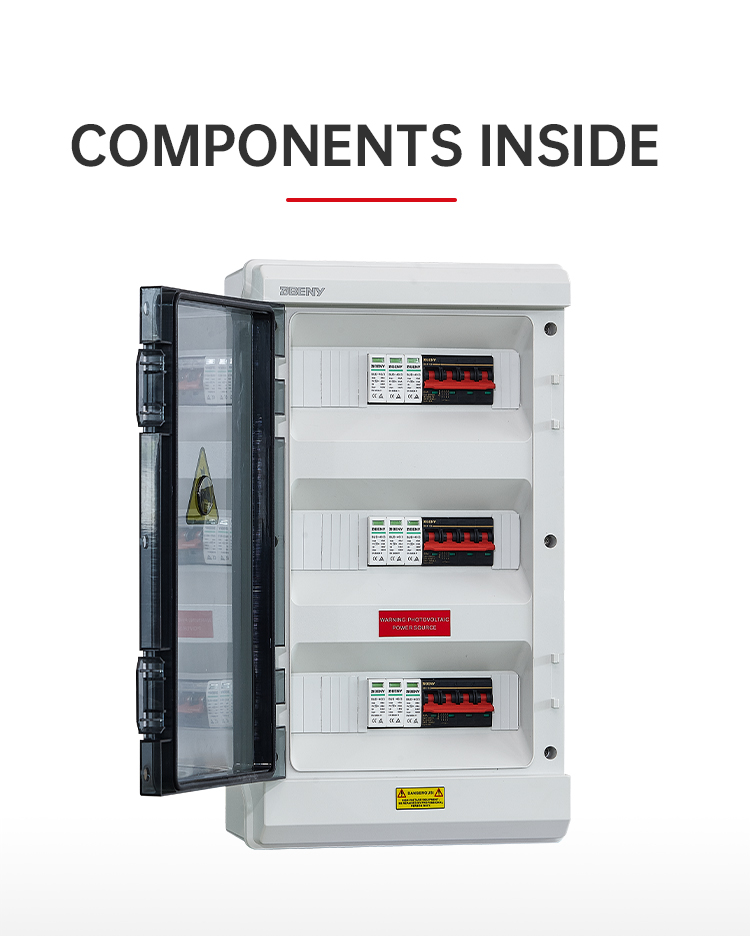

Details Images
