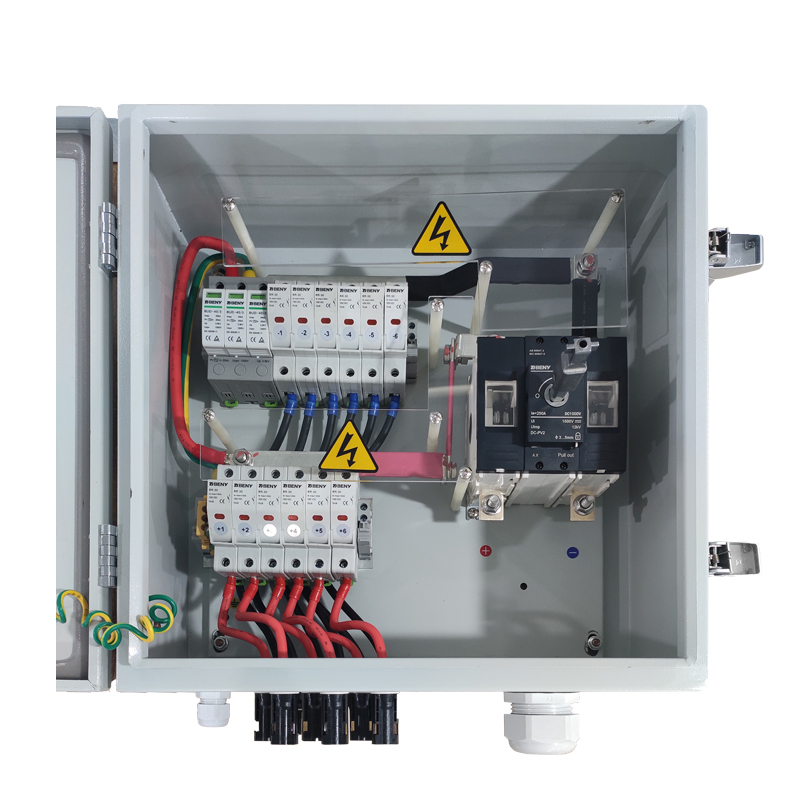

1000V DC Combiner Box 6 In 1 Out BHT-6/1

Products Description


BHT-6/1 1000V DC Combiner Box for Solar PV
-Installed between solar panels and solar inverter.
-Protections including over-voltage, over-load for longer the solar system working life.
-Equipped with the most reliable DC components bring maximum protection.


BENY Electric Solar Combiner Box 1 Strings to 36 Strings
600V/1000V/1500V/AFCI/Monitoring Option
BENY Electric with 30+ years experience of working in the electrical industry offers a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects.
*5 Years warranty
*600V/1000V/1500V
*AFCI Combiner Box
*IP65 Waterproof Enclosure
*Build-in UL98B listed DC switchgears
*From 1 to 24 strings customized solutions
*Design and customized at IEC 62109-1 with CE, and TUV certificates.
*Over-voltage, over-load, lightning protection; Real-time detection, long-distance communication.


Product Paramenters
General Data
Model No.
BHT-6/1
Input
6 strings
Output
1 string
Maximum Voltage
1000V
Max DC Short Circuit Current Per Input(Isc)
15A(Changeable)
Maximum Current Output
80A
Enclosure

Material Type
Polycarbonate/ABS
Degree of Protection
IP65
Degree of Resistance to Impacts
IK10
Dimension(W*H*D)
540*360*180mm
Cable input Entry
PG09 Cable Gland,2.5-16mm²
Output Cable Gland
PG36 50-70mm²
DC Switch Disconnector
BH-250
Rated Insulation Voltage (Ui)
1000V
Rated Current(Le)
125A
Certification
CB,CE
DC Surge Arrester
BUD-40/3
Max Operation Voltage(Ucpv)
1000V
Maximum Discharge Current
40KA
Certification
TUV,CE
DC Fuse Holder
BR-30
Rated WorKing Voltage
1000V
Fuse Link
10*38mm Littel 15A
Certification
UL,CB,CE
Company Profile

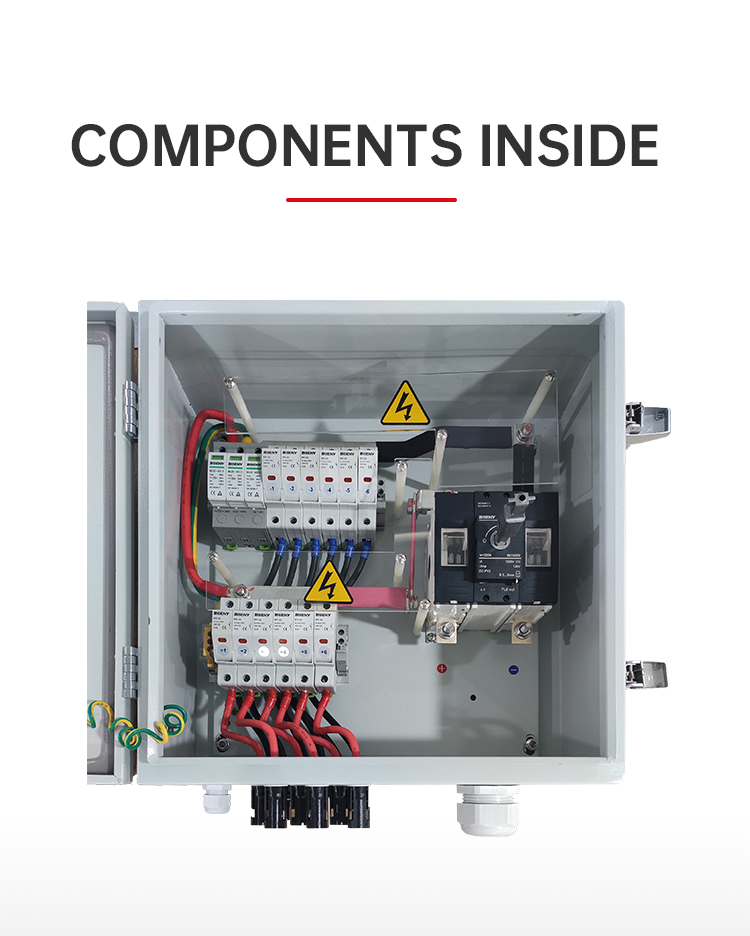

Details Images
