Focus on :

AC SPD 385V 1P-4P BUA-40 IEC

Highlights:

    • RoHS material
    • 385V Type 2 AC SPD
    • According to EN 61643-31
    • Thermal disconnect inside for fault indication
    • 5 years warranty


TYPE 2 AC SURGE PROTECTION DEVICE UP TO 385V


Type 2 AC SPD protects the AC equipments and circuits from surges damage or overvoltage.



Improve the PV system safety for a longer PV system life. According to EN 61643 standard..





PLUG-IN MOV MODULES

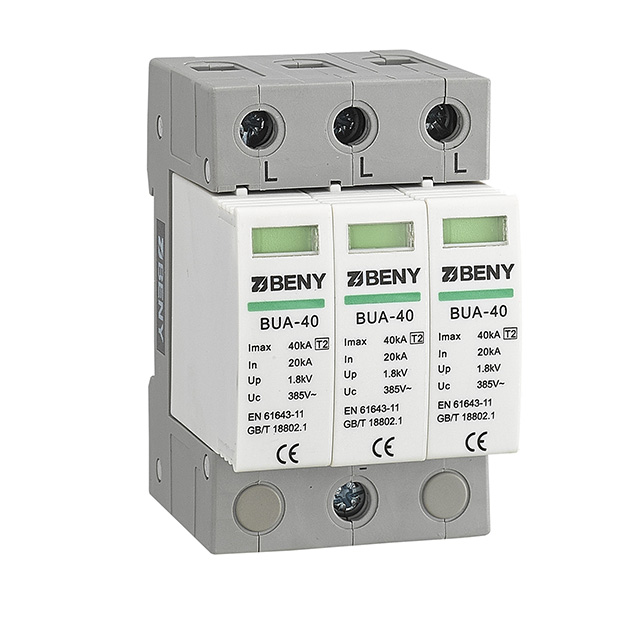

The surge protection device is consisting of a base part and 3 plug-in high energy MOV protection modules.



Remote signaling contact for monitoring device is for options.



With thermal disconnect mechanical inside for fault indication by red indicator flag.





SPECIFICATION

Model BUA-40/1,BUA-40/2 BUA-40/3, BUA-40/4
Moulds 1,2 3,4
SPD according to EN 50539-11 Type 2
Open Voltage Uoc Max 385V
Max. discharge current (8/20 µs) 40KA
Nominal discharge current (8/20 µs 20KA
Voltage protection level  Up ≤ 1.8KV
Response Time (tA ) ≤ 25 ns
Operating state / fault indication Green/Red
Remote Signaling Contact (optional) Changeover contact
For mounting on 35mm DIN rails
Degree of protection IP20
Certificate CE
