AC Isolator 690V-1000V 50A BYAF-125 IEC
Highlights:
- IEC60947-3 standard
- Tested to extreme ambient conditions from –40 to 85º C
- 50A 1000VAC
- Lockable at off position
- Remote signal is optional
- 5 years warranty for free replace

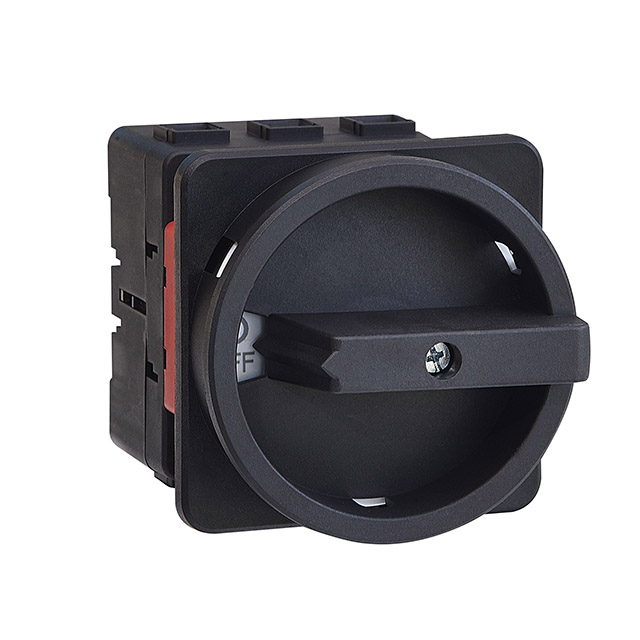

BYAF-125 AC switch is according IEC60947.3 standard, panel mounting for AC controlling panel installation.
3P 1000VAC up to 50A for AC circuit switch and control.
Application in solar inverter AC side, AC combiner box main switch or anything AC equipments match the voltage and current.
| Model | BYAF-125 |
| Poles | 3P |
| Standard | IEC60947.3 |
| Utilization Category | AC-23A |
| Rated Operational Voltage (Ue) | 230V,400V,690V,800V,1000VAC |
| Rated Current | 50Aac |
| Rated frequency | 50Hz/60Hz |
| Electrical Cycles | 1000 |
| Mechanical Cycles | 10000 |
| Protection Degree | IP20 body, IP66 in enclosure |
| Certificate | TUV |
