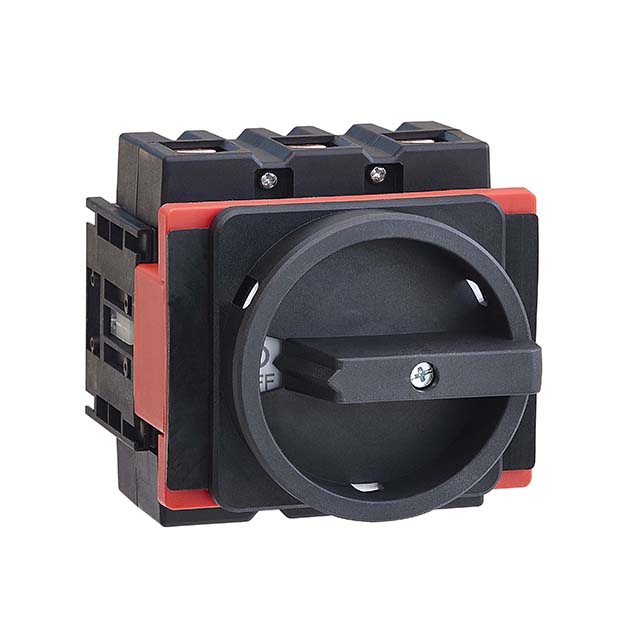

AC Isolator 690V-1000V 200A BYAF-200 IEC
Highlights:
- IEC60947-3 standard
- Tested to extreme ambient conditions from –40 to 85º C
- 200A 1000VAC
- Lockable at off position
- 5 years warranty for free replace
BYAF-200 AC switch is according IEC60947.3 standard, panel mounting for AC controlling panel installation.
3P 1000VAC up to 200A for AC circuit switch and control.
Application in solar inverter AC side, AC combiner box main switch or anything AC equipments match the voltage and current.
| Model | BYAF-200 |
| Poles | 3P |
| Standard | IEC60947.3 |
| Utilization Category | AC-21B |
| Rated Operational Voltage (Ue) | 220V,240V,380V,440V,500V,660V,690V,1000VAC |
| Rated Current | 200Aac |
| Rated frequency | 50Hz/60Hz |
| Electrical Cycles | 1000 |
| Mechanical Cycles | 10000 |
| Protection Degree | IP20 body, IP65 in enclosure |
| Certificate | TUV |
