Solar DC String Box BHS-2-2
Highlights:
- 1000V DC
- 2 Input 2 Output
- Maximum Current Output: 15A
- Max DC Short Circuit Current Per Input(Isc): 15A(Changeable)

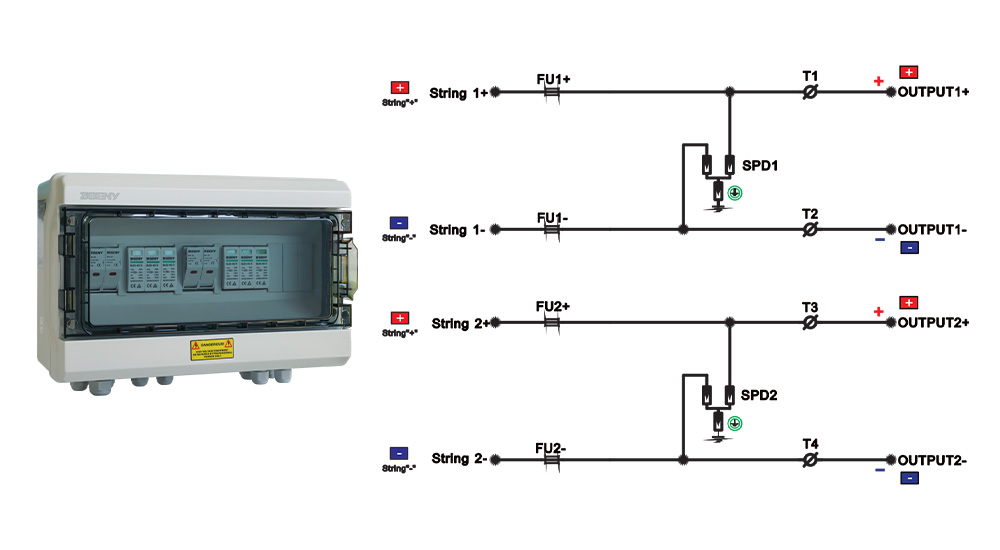

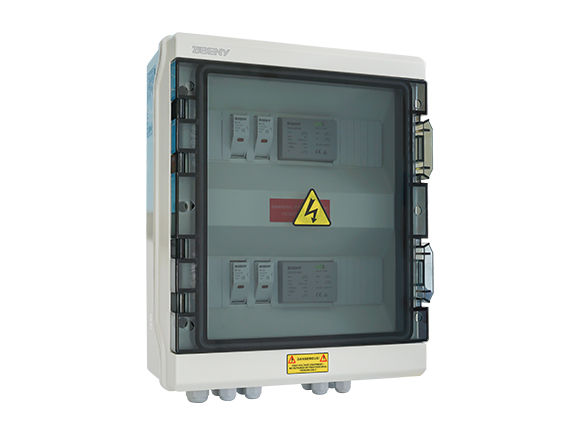

IP65 DC string box is designed for 2 strings PV system.
For surge protection and over-load protection at solar DC side.
| Model | BHS-2/2 |
| Input | 2 strings |
| Output | 2 strings |
| Maximum Voltage | 1000V |
| Maximum Current Output | 15A |
| Max DC Short Circuit Current Per Input(Isc) | 15A(Changeable) |
| Degree of Protection | IP65 |
