Focus on :

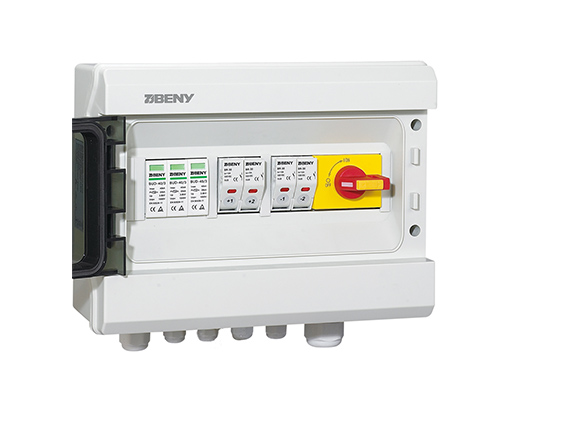

1000V DC COMBINER BOX 2 IN 1 OUT BHS-2-1

Highlights:

    • 1000V DC
    • 2 strings input, 1 string output
    • TUV certificate
    • DC Switch up to 1000V 32A
Products Description

BHS-2/1 1000V DC Combiner Box for Solar PV
-Installed between solar panels and solar inverter.
-Protections including over-voltage, over-load for longer the solar system working life.

-Equipped with the most reliable DC components bring maximum protection.


BENY Electric Solar Combiner Box 1 Strings to 36 Strings
600V/1000V/1500V/AFCI/Monitoring Option
BENY Electric with 30+ years experience of working in the electrical industry offers a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects.
*5 Years warranty
*600V/1000V/1500V
*AFCI Combiner Box
*IP65 Waterproof Enclosure
*Build-in UL98B listed DC switchgears
*From 1 to 24 strings customized solutions
*Design and customized at IEC 62109-1 with CE, and TUV certificates.
*Over-voltage, over-load, lightning protection; Real-time detection, long-distance communication.


Product Paramenters
General Data
Model No.
BHS-2/1
Input
2 strings
Output
1 string
Maximum Voltage
1000V
Max DC Short Circuit Current Per Input(Isc)
15A(Changeable)
Maximum Current Output
32A
Enclosure
BX-13
Material Type
Polycarbonate/ABS
Degree of Protection
IP65
Degree of Resistance to Impacts
IK10
Dimension(W*H*D)
292*220*120mm
Cable input Entry
PG09 Cable Gland,2.5-16mm²
Output Cable Gland
PG21 2.5-16mm²
DC Switch Disconnector
BYT.2-32
Rated Insulation Voltage (Ui)
1000V
Rated Current(Le)
32A
Certification
UL,TUV,KEMA,SAA,CE
DC Surge Arrester
BUD-40/3
Max Operation Voltage(Ucpv)
1000V
Maximum Discharge Current
40KA
Certification
TUV,CE
DC Fuse Holder
BR-30
Rated WorKing Voltage
1000V
Fuse Link
10*38mm Littel 15A
Certification
UL,CB,CE
Company Profile

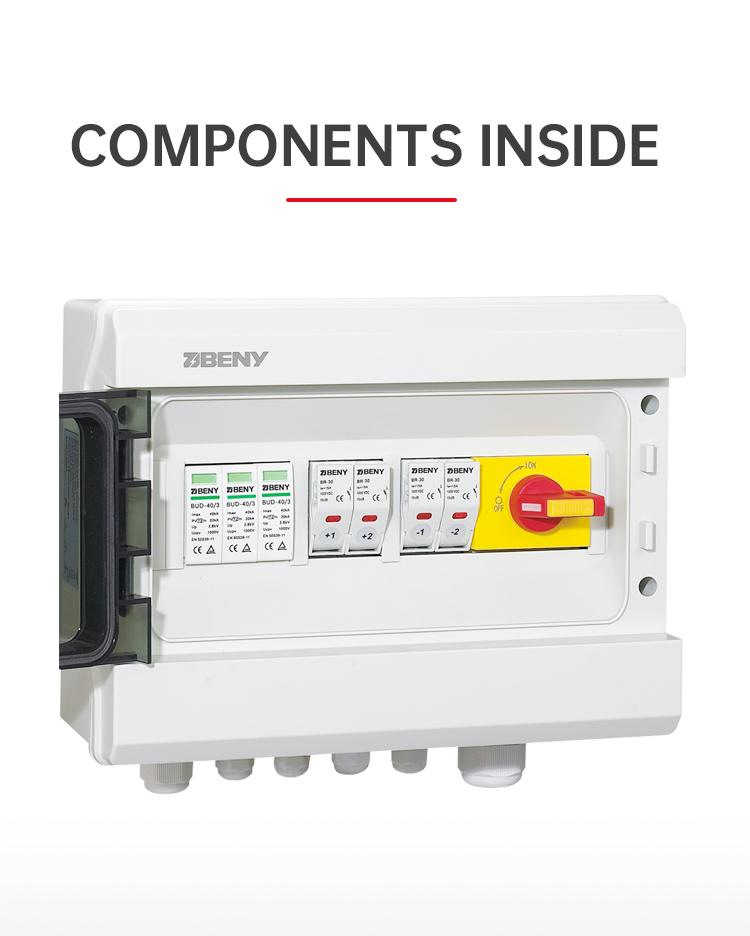

Details Images
