Focus on :

DC Isolator 1200V 32A with MC4 IP66 BYT-32M1 IEC&AS

Highlights:

    • 1200Vdc 32A
    • IP66 for any positions mounting
    • UV resistance and flame retardant material
    • 3ms arc suppression
    • AS 60947.3:2018 DC-PV2, IEC 60947.3
    • Breather valve
    • Pre-wired MC4 connectors
    • Lockable at off position


THE FIRST DC ISOLATOR FULLY COMPLIANT WITH AS 60947.3:2018 DC-PV2


In Australia and New Zealand DC isolating switches must have a valid Certificate of Conformity confirming the product complies with AS 60947.3:2018 DC-PV2.



And a breathing valve shall be attached on the DC isolator.



BYT-32M1 solar DC isolator up to 1200V is designed according to IEC60947-3 DC-21B / AS60947.3:2018 DC-PV2 standard.



The first DC isolator compliant with AS 60947 requirements, and can be used in worldwide solar DC systems.

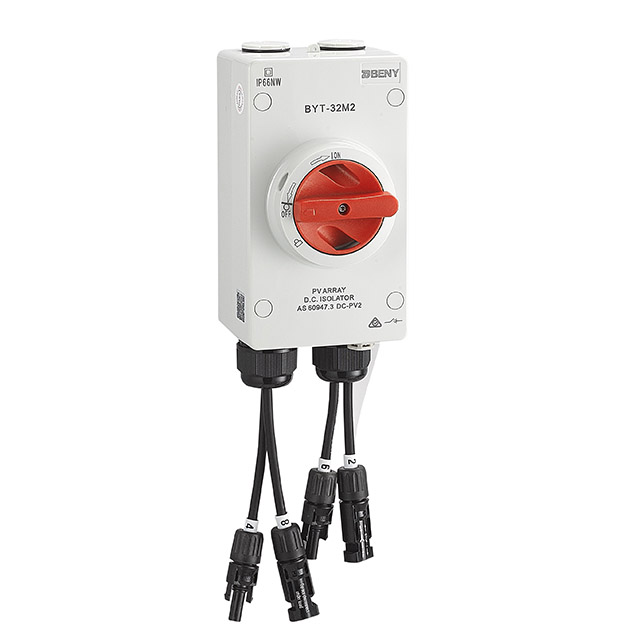

PRE-WIRED DC ISOLATOR WITH MC4 CONNECTORS


The DC isolator switch BYH-32M1 is wired with MC4 for faster and safer installation.



Pre-wired MC4 in factory avoid the loose wiring or failure installation.





SPECIFICATION

Model BYT-32M1
Poles 2P
Standard AS60947.3:2018,IEC60947.3
Utilization Category DC-PV2 / DC-21B
Rated Operational Voltage (Ue) 500V,600V,800V,1000V
Rated Current 9A-40A
Mechanical Cycle 15000
Electrical Cycle 1000
Protection Degree IP66 enclosure/IP20 switch body
Polarity No Polarity
Certificate SAA / TUV / CB
