Focus on :

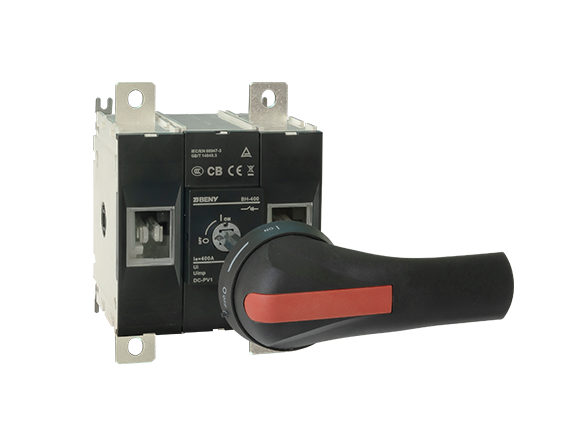

DC Disconnect Switch 1500V 400A BH-400-2P IEC

Highlights:

    • 1500V DC, 400A
    • 2 Pole
    • IEC60947.3
    • Reliable DC arc extinguishing technology with PCT patents
    • Lockable handle
    • Non-polar switch
    • Modular and compact design

SOLAR DC SWITCH DISCONNECT UP TO 1500V 400A


BENY BH -400 DC disconnect switch is designed and developed for solar PV inverter, combiner box or any DC equipments build-in according to lEC60947-3.



The DC load break switches provide safety isolation for one DC circuit up to 1500VDC 400A.




ADVANTAGES


* Non-polar switch



* Modular and compact design



* Reliable DC arc extinguishing technology with PCT patents



* High capacity 10KA for 50ms test.



* Lower power losing





SPECIFICATION

Model BH-400-2P
Poles 2P
Standard IEC60947.3
Rated Working Voltage ( Ue) 1000V/1500V
Rated Current ( le) 320A/400A
Rated impulse withstand voltage ( Uimp) 12kV
Rated short-time withstand current (1s)( lcw) 10kA
Rated short-circuit making capacity ( lcm) 10kA
Rated conditional short-circuit current ( kA) 10kA
Utiizatin category DC DC-PV1
Number of cycles of operation(With current) 200
Number of cycles of operation(Without current) 5000
IP rating terminals IP20
Outside the ark handle IP66
